Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> System Diagram >> System Circuit Diagram

System Circuit Diagram

System Circuit Diagram

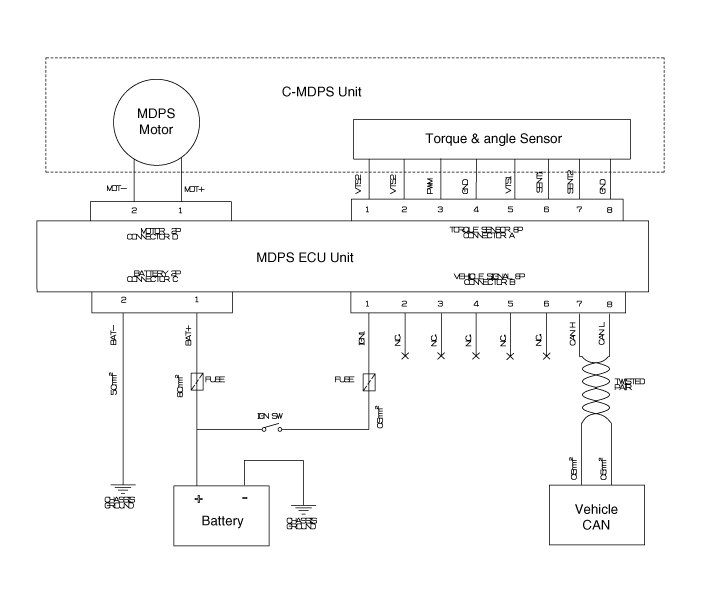

MDPS Circuit Diagram

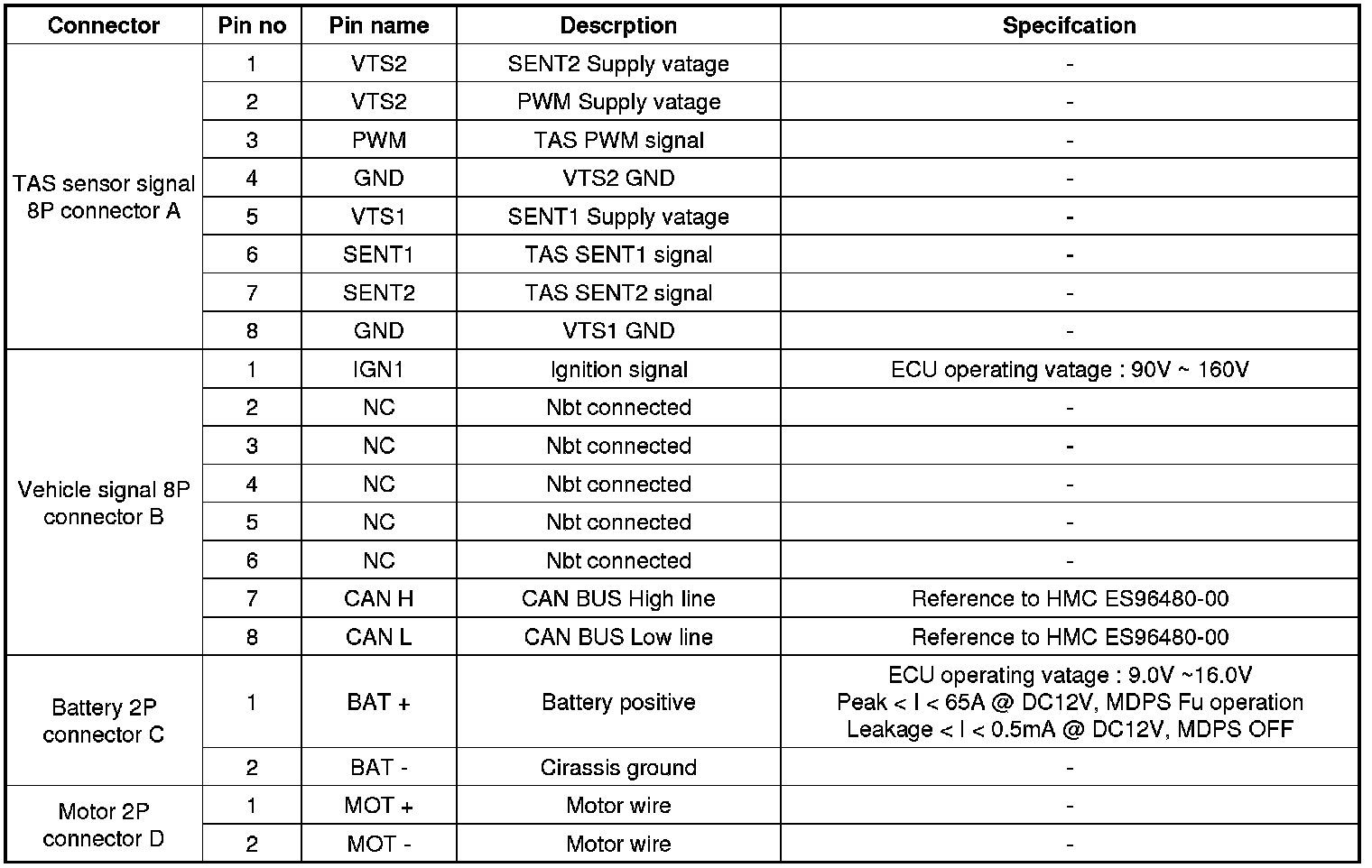

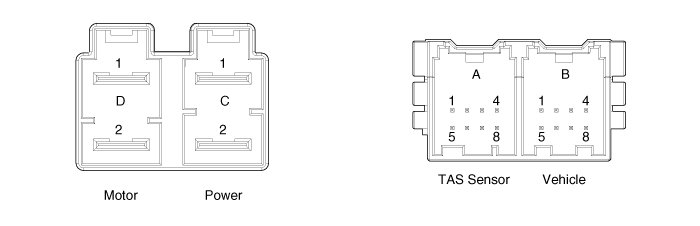

Harness Connector
