Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD233 (Electronic Oil Pump System)

Diagram Set SD233 (Electronic Oil Pump System)

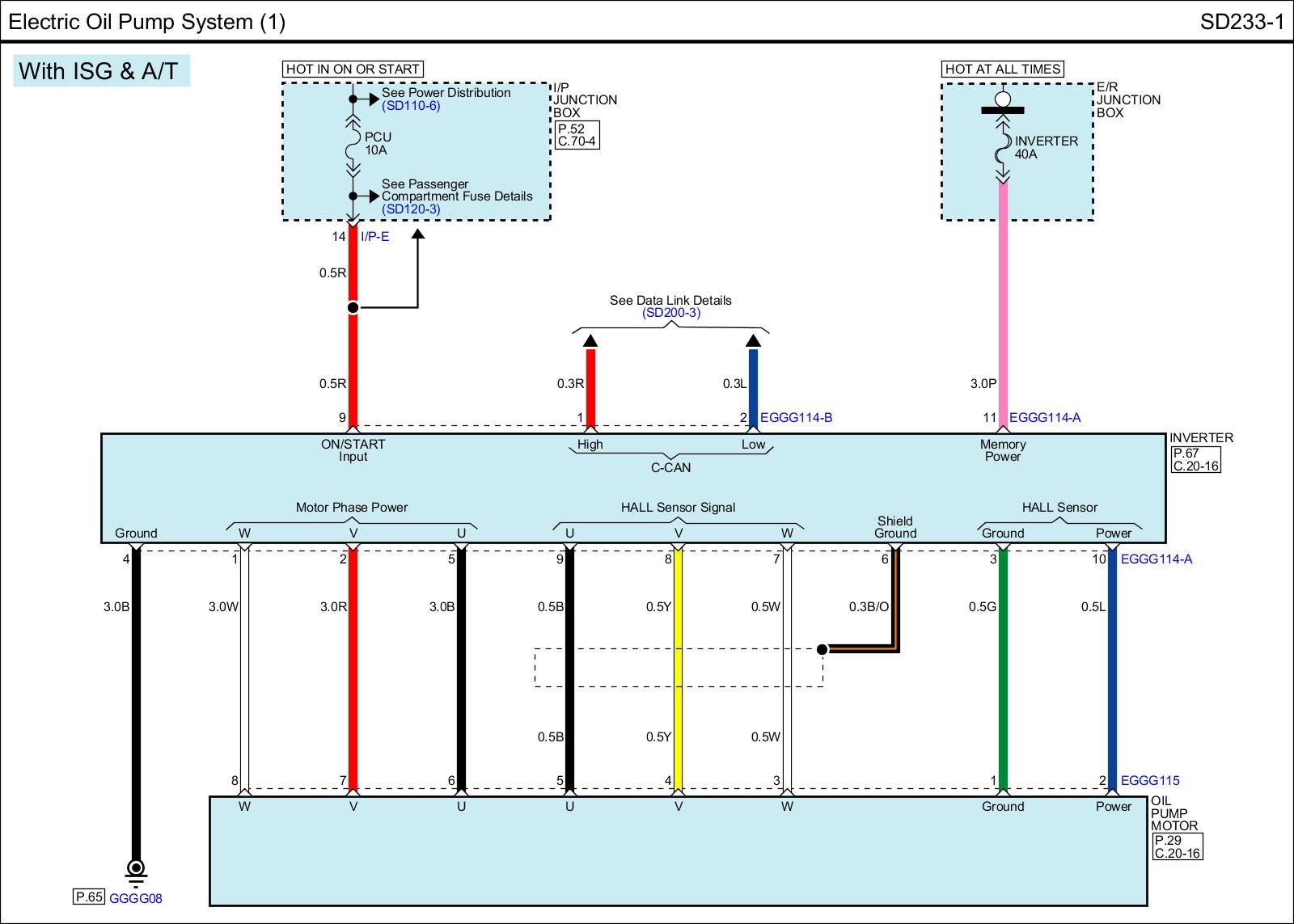

SD233-1 Electric Oil Pump System (1):
