Control Module, A/T

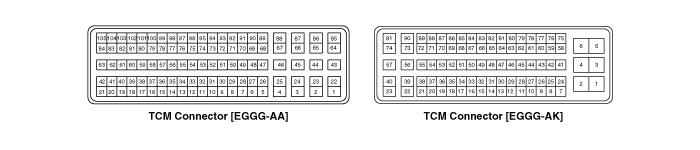

TCM connector and terminal function





TCM Terminal Function

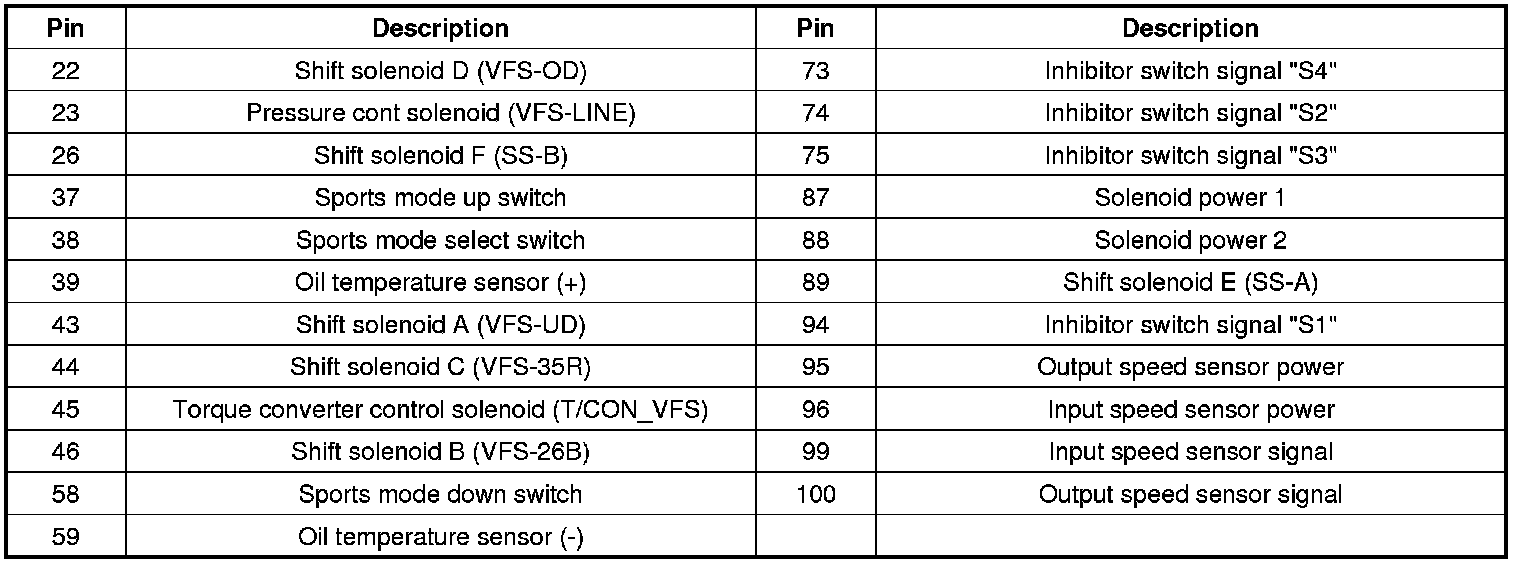

Connector [EGGG-AA]

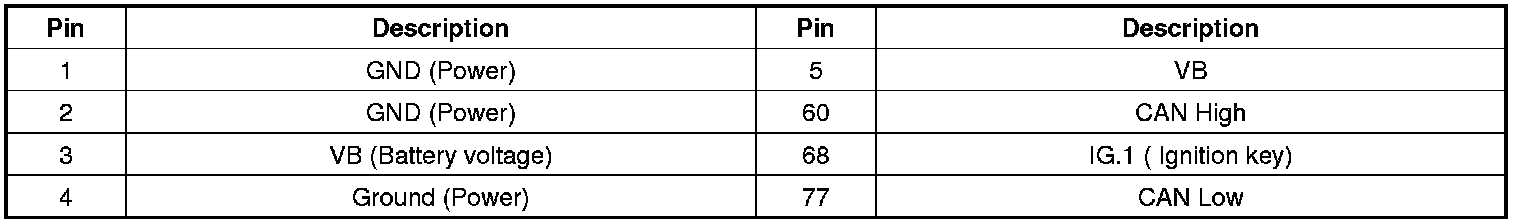

Connector [EGGG-AK]






TCM Terminal input/ output signal

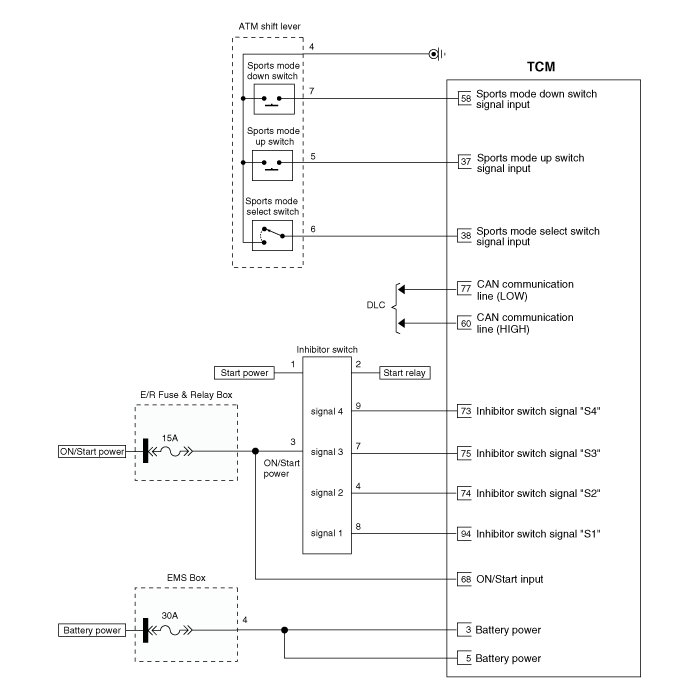

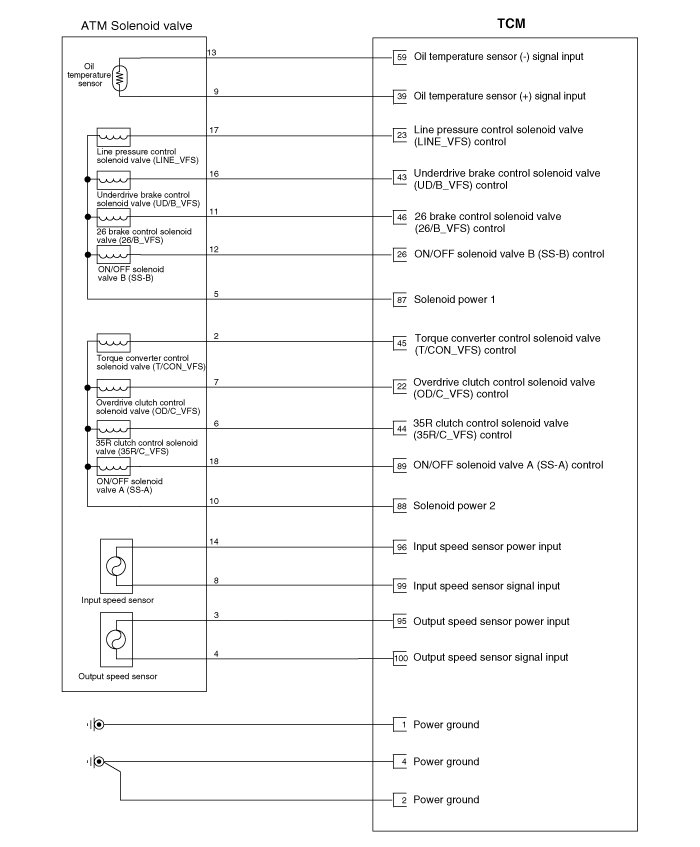

Circuit Diagram
