Instrument Cluster / Carrier
>>
DC/AC Inverter
DC/AC Inverter

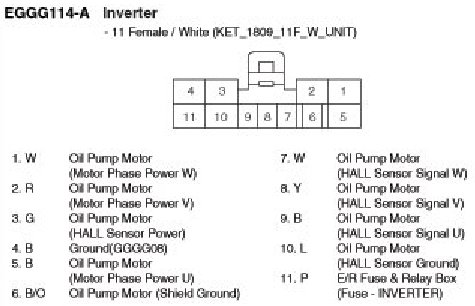

EGGG114-A Inverter:

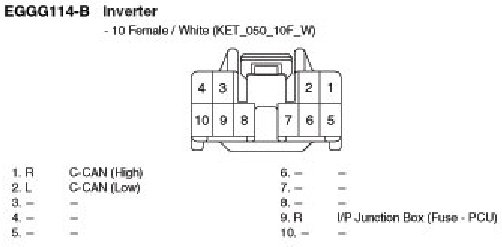

EGGG114-B Inverter:
