A/C Control Module (Auto A/C)

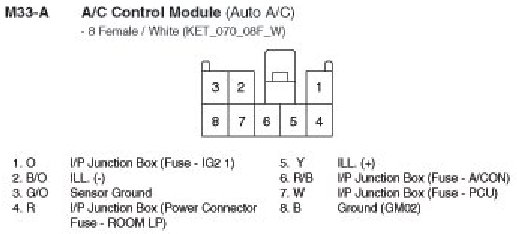

M33-A A/C Control Module (Auto A/C):




M33-B A/C Control Module (Auto A/C):
