Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M56 Intake Actuator (Manual A/C)

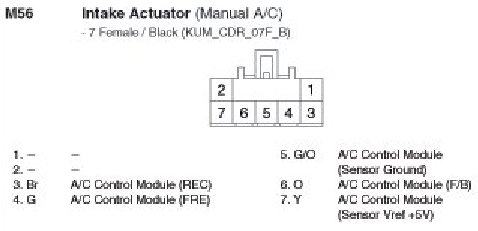

M56 Intake Actuator (Manual A/C)

M56 Intake Actuator (Manual A/C):
