Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M41 FET (Field Effect Transistor) (Auto A/C)

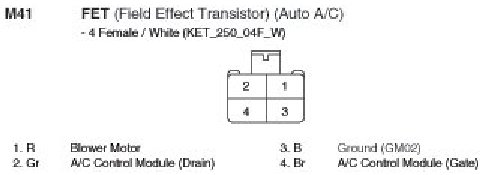

M41 FET (Field Effect Transistor) (Auto A/C)

M41 FET (Field Effect Transistor) (Auto A/C):
