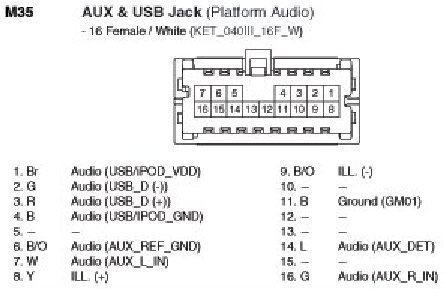

M35 AUX & USB Jack (Platform Audio)
M35 AUX & USB Jack (Platform Audio)
M35 AUX & USB Jack (Platform Audio):
