Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> EGGG24-2 Injector #2

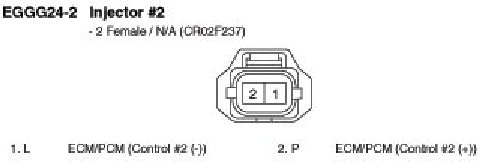

EGGG24-2 Injector #2

EGGG24-2 Injector #2:
