Home >> Kia >> 2012 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antenna - Keyless Entry >> Smart Key Bumper Antenna (With Smart Key)

Smart Key Bumper Antenna (With Smart Key)

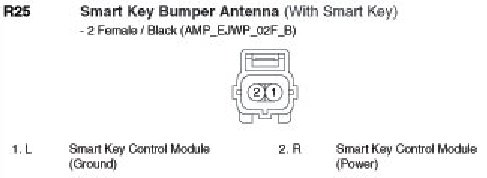

R25 Smart Key Bumper Antenna (With Smart Key):
