Power Mirror Switch: Testing and Inspection

Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim panel.

3. Disconnect the connector from the power window switch module.

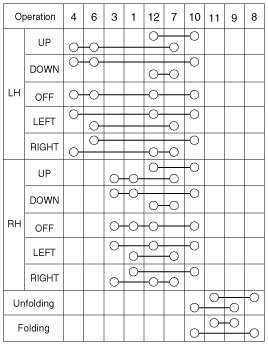

4. Check for continuity between the terminals in each switch position according to the table.

[Standard]





[Power Mirror Switch - With Folding Mirror]





[Power Mirror Switch - Without Folding Mirror]
