Seat Temperature Element: Testing and Inspection

Inspection

Driver seat and Passenger seat

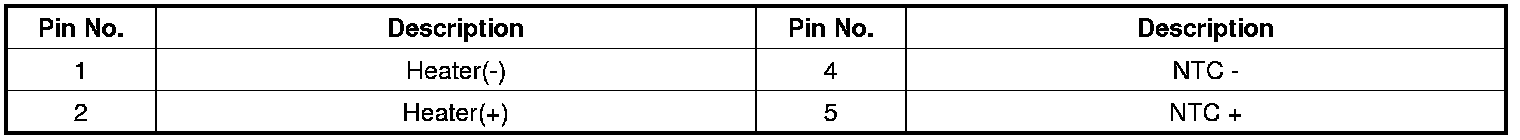

1. Check for continuity and measure the resistance between terminals.

[Cushion]










Average Max. temperature
- Cushion : HIGH : 42 ± 2°C / LOW : 39 ± 2°C
- Back : HIGH : 52 ± 2°C / LOW : 46 ± 2°C

2. Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.

Standard value (Fabric / Leather)
- Cushion : 1.18Ohms ± 10%
- Back : 1.13Ohms ± 10%
- Set : 2.31Ohms ± 10%
