Repair Procedures

Replacement

Door Scuff Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the front door scuff trim (A).
[Front]




2. Remove the rear seat cushion.

3. After loosening the mounting screws, then remove the rear door scuff trim (A).
[Rear]




4. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Cowl Side Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.
2. Remove the hood release handle.

3. Using a screwdriver or remover, remove the cowl side trim (A).




4. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Front Pillar Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the front pillar trim (A).

CAUTION:
- Lock pin (B) is need to changed to new product surely.




2. Disconnect the tweeter speaker connector (A).




3. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
- Make sure the connector is connected properly.

Center Pillar Trim Replacement

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items :
A. Front door scuff trim
B. Rear door scuff trim
2. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
3. The seat belt anchor pretensioner (A) can be removed after pushing the lock pin (B) as arrow direction.




4. Using a screwdriver or remover, remove the center pillar lower trim (A).




5. Using a screwdriver or remover, remove the center pillar upper trim (A).




6. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement
[5 Door]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items :
A. Rear seat assembly

2. After loosening the mounting screws, then remove the rear door scuff trim (A).




3. Using a screwdriver or remover, remove the rear transverse trim (A).




4. After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)




5. After loosening the mounting blots, then remove the rear seat bracket (A).




6. Using a screwdriver or remover, remove the lamp (A).
7. Disconnect the lamp connector (B).




8. After loosening the mounting screws, then remove the luggage side trim (A).




9. Remove the rear seat belt upper anchor cover (B).
10. Using a screwdriver or remover, remove the rear pillar trim (A).




11. Installation is the reverse of removal.

NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.

[4 Door]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the rear pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

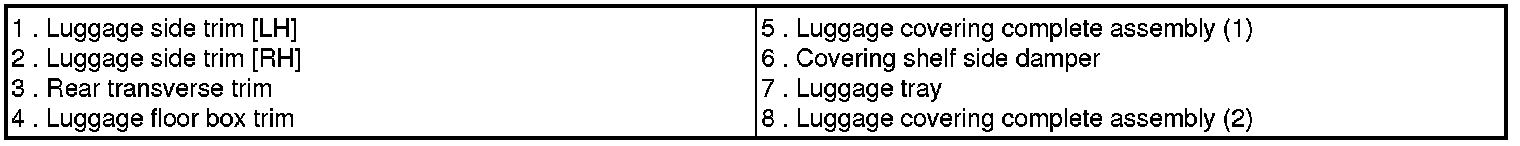

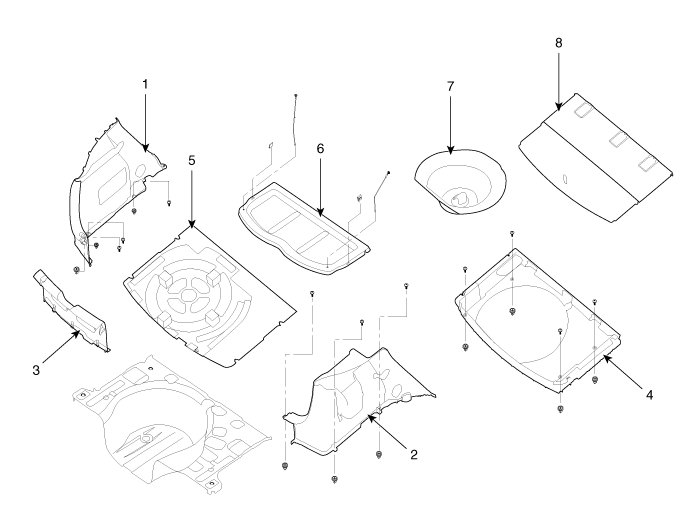

Luggage Side Trim Replacement
[5 Door]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat.

2. Remove the rear door scuff trim.
3. Remove the rear transverse trim.
4. After loosening the mounting screws, then remove the luggage side trim.
5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.










Rear Package Tray Trim Replacement
[4 Door]

CAUTION:
- Put on gloves to protect your hands.
- Use a plastic panel removal tool to remove interior trim pieces to without marring the surface.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat assembly.

2. Using a screwdriver or remover, remove the rear pillar trim (A).




3. After loosening the mounting screws, then remove the rear door scuff trim (A).




4. After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).

Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)




5. After loosening the mounting blots, then remove the rear seat folding bracket (A).




6. After loosening the mounting clips and screws, then remove the luggage partition trim (A).




7. After loosening the mounting clips and screw, then remove the rear wheel housing trim (A).




8. Disconnect the high mounted stop lamp connector (A).




9. Remove the rear seat belt upper anchor cover (A).




10. Remove the rear package tray trim (A).




11. Installation is the reverse of removal.

NOTE:
- Make sure the connectors are connected in properly.
- Replace any damage clips.
