Speaker: Service and Repair

Inspection

1. Troubleshooting for Speaker
(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.

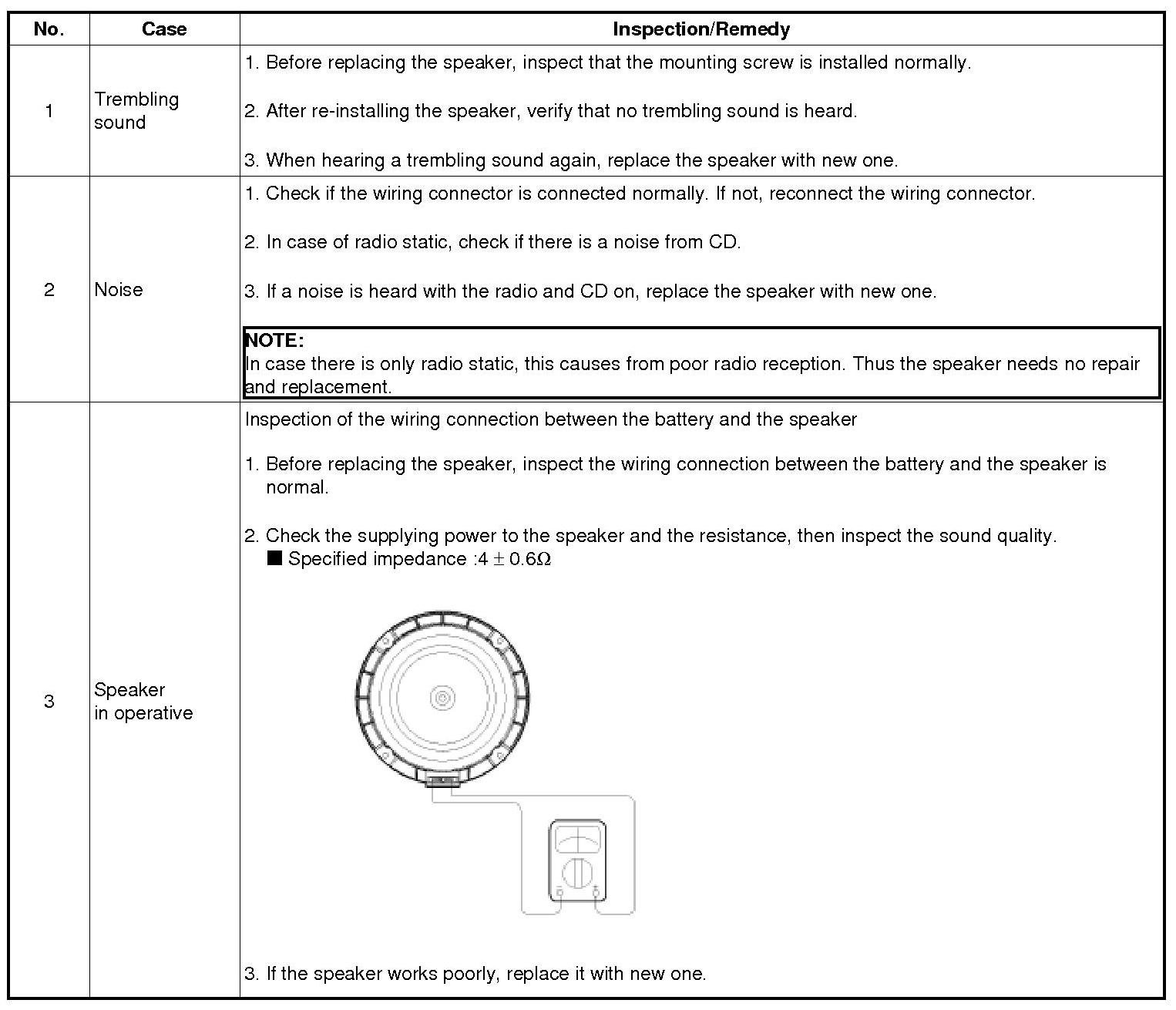

(2) Case Troubleshooting






CAUTION:
- When handling the speakers, do not damage the speaker with impact, Like drop or throw.
- Be careful not to cover water and oil over the speaker.
- Caution during handling of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
- Modifying the audio system may cause damage the speakers.
- If this is the case, The speakers are not covered by the manufacturer's warranty.

Removal

Front Speaker
1. Remove the front door trim panel.

2. Remove the front speaker (A) after loosening 3 screws.





Rear Speaker
1. Remove the rear door trim panel.

2. Remove the rear speaker (A) after removing 3 screws.





Tweeter Speaker
1. Remove the front pillar trim (A).




2. Remove the tweeter speaker (A) after disconnecting the connector and loosening 2 screws.






Installation

Front Speaker
1. Install the front speaker.
2. Install the front door trim.

Rear Speaker
1. Install the rear speaker.
2. Install the rear door trim.

Tweeter Speaker
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front pillar trim.
