General Information

Automatic Transaxle
P2709 Shift Control Solenoid Valve \'F\' Electrical (SS-B) - General Information

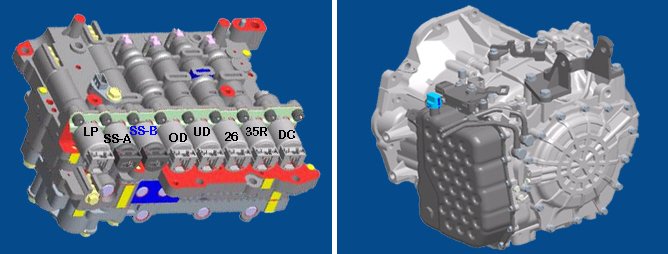

Component Location





General Description

Shift solenoid valve is ON/OFF type and changed a way of oil direction. PCM control solenoid valve to set gear speed position.

DTC Description

This code is set when circuit open or short detected by PCM.

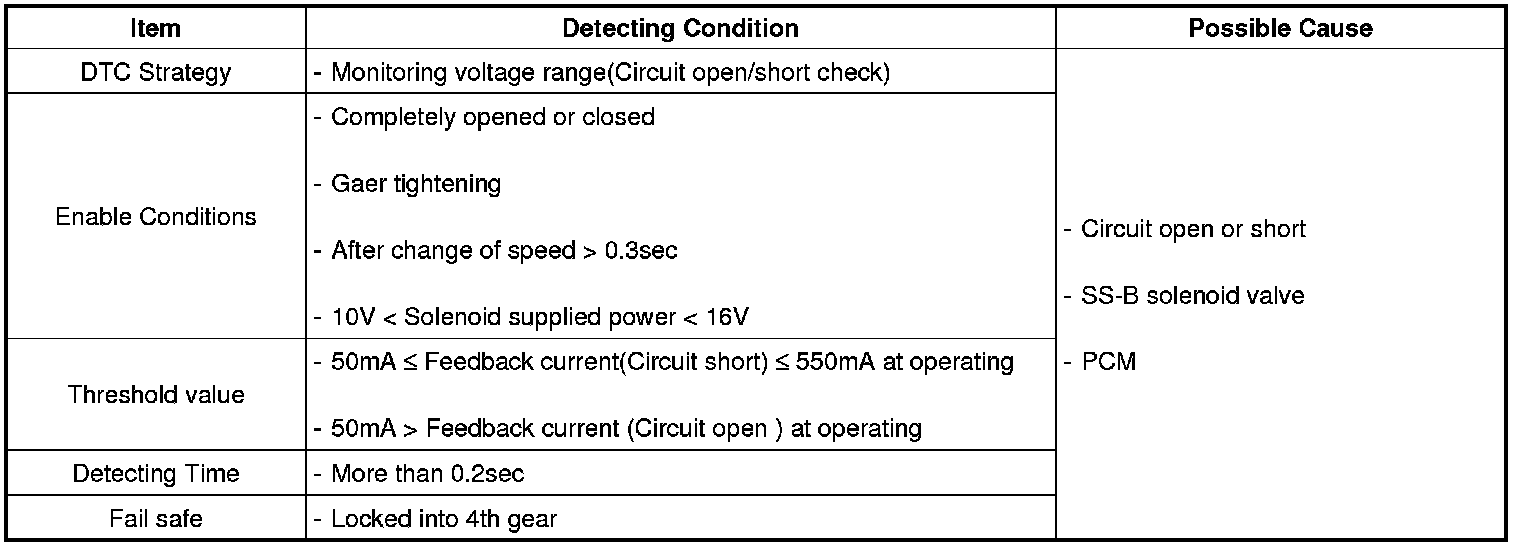

DTC Detecting Condition





Specification

Operating step table at each status





o : Connected status
x : Connedted at Vehicle speed above 8km/h





o : Operated at Vehicle speed under 5km/h

- Working voltage: under 7.5v (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)
- Release voltage: under 5.5v (Supplied perssure 5.0kgf/cm2, Oil temperature 85°C)
- Release current: under 5.5v (Supplied perssure 0.51kgf/cm2, Oil temperature 85°C)
- Inetrnal resistance : 10 - 11 Ohms( 20°C)

Diagnostic Circuit Diagram
