P2414 O2 Sensor Exhaust Sample Error (Bank 1 Sensor 1) - General Information

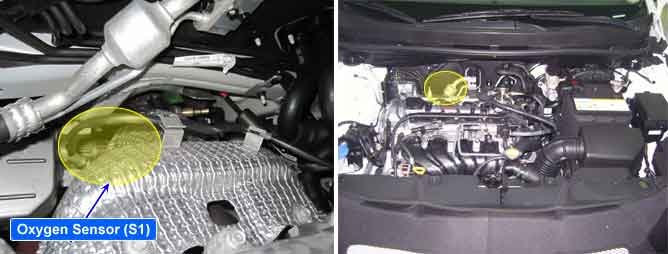

Component Location





General Description

The linear O2 sensor is mounted on the front side of the Catalytic Converter (warm-up catalytic converter) or in the front exhaust pipe. It detects a wide range of air/fuel ratios in the exhaust gas from the rich to lean regions. This linear O2 sensor produces a current that corresponds to a specific air/fuel ratio.The ECM monitors this signal and determines whether the air/fuel mixture is rich or lean. The ECM constantly monitors the linear O2 sensor and increases or decreases the fuel injection duration using this signal. This is called closed-loop fuel control operation.

DTC Description

ECM shows P2414 when upstream O2 sensor is higher than 3.7V and target lambda value is lower than 1.6.

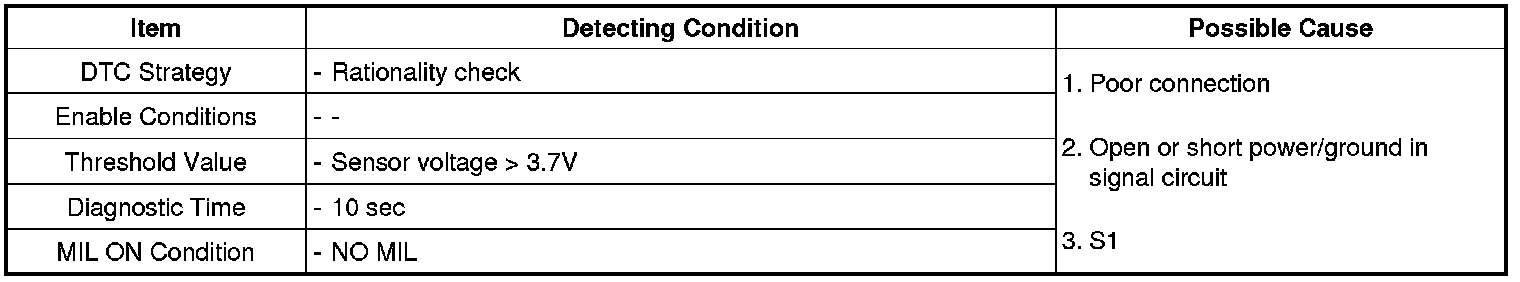

DTC Detecting Condition

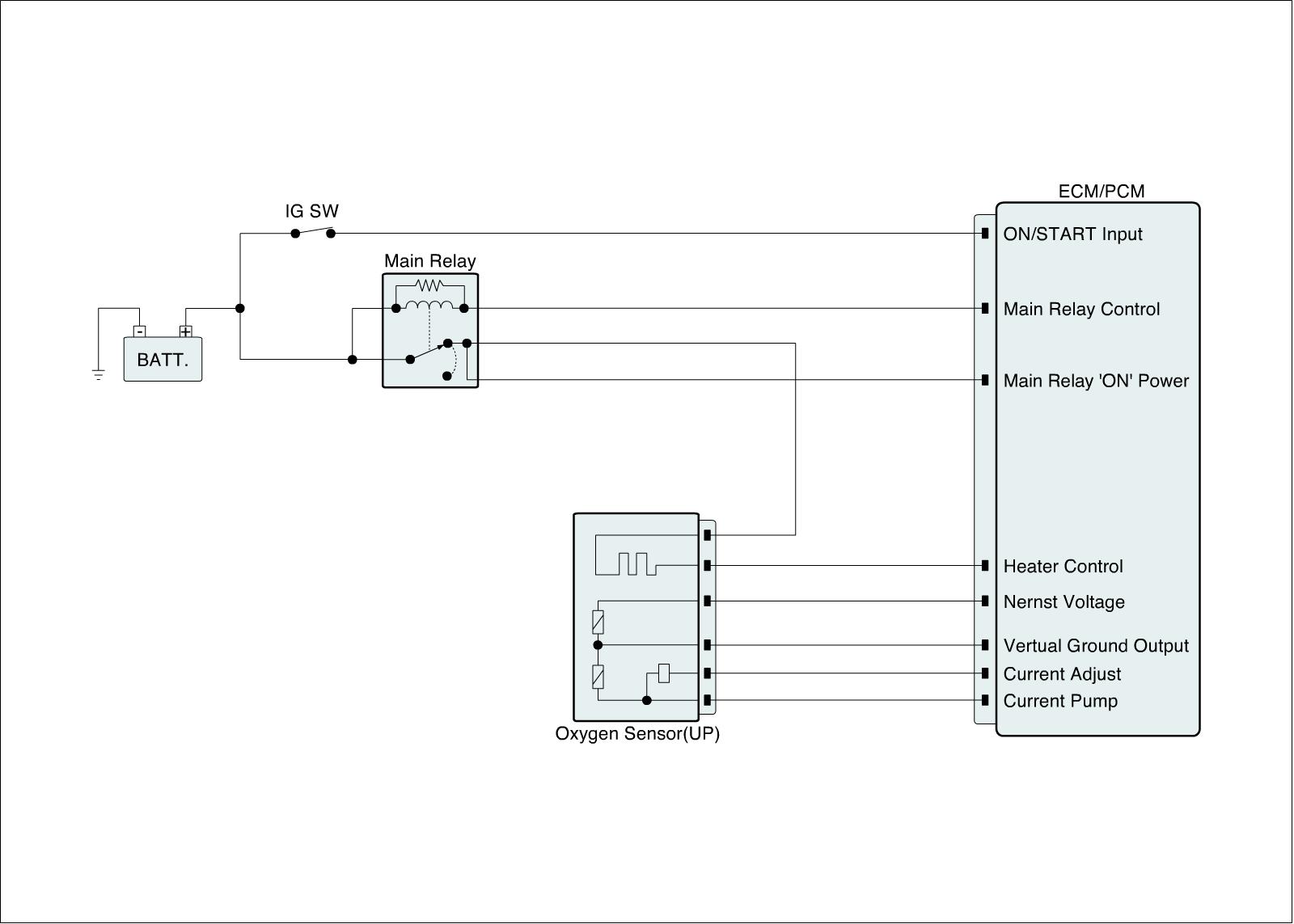

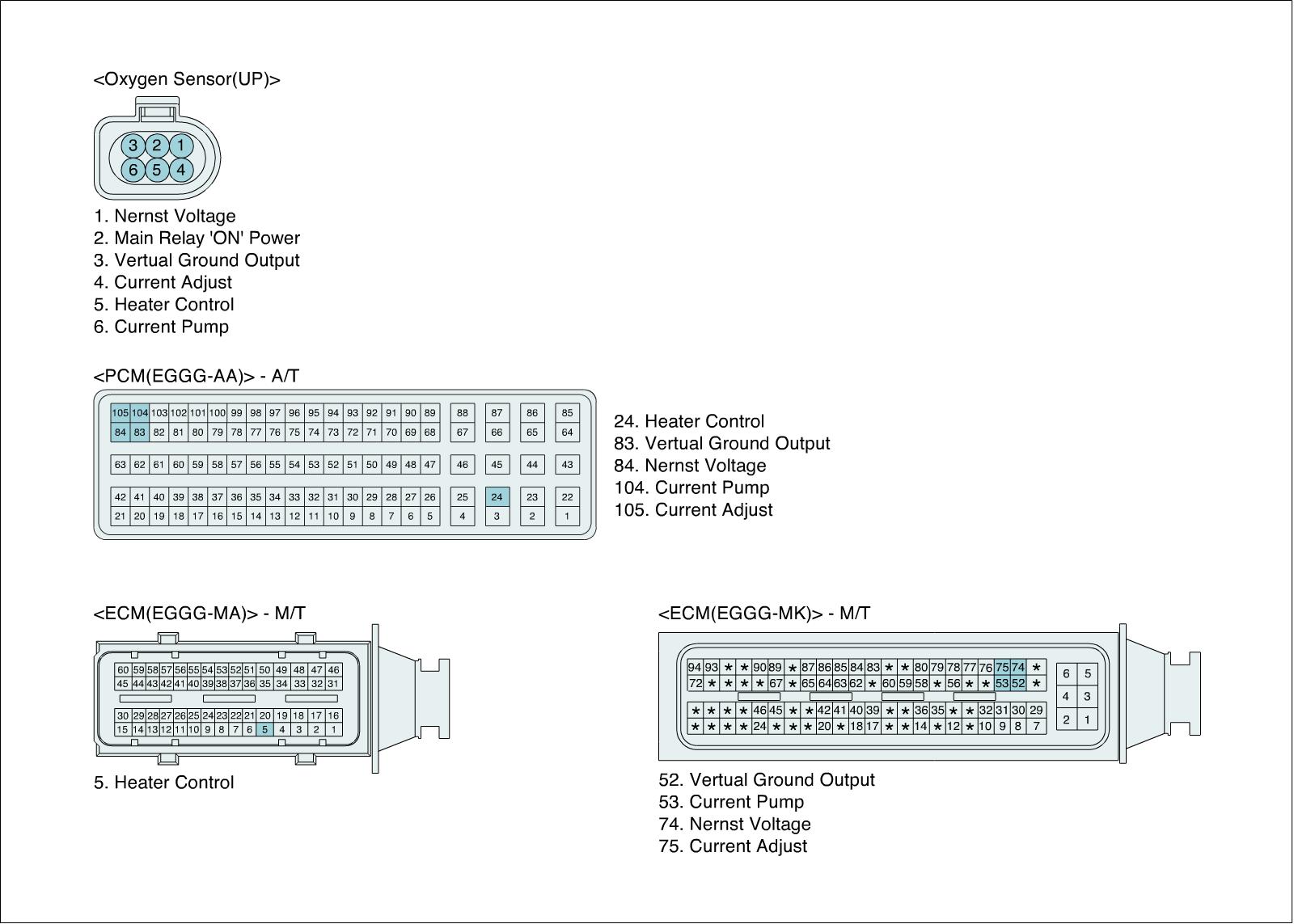

Diagnostic Circuit Diagram










Signal Waveform & Data

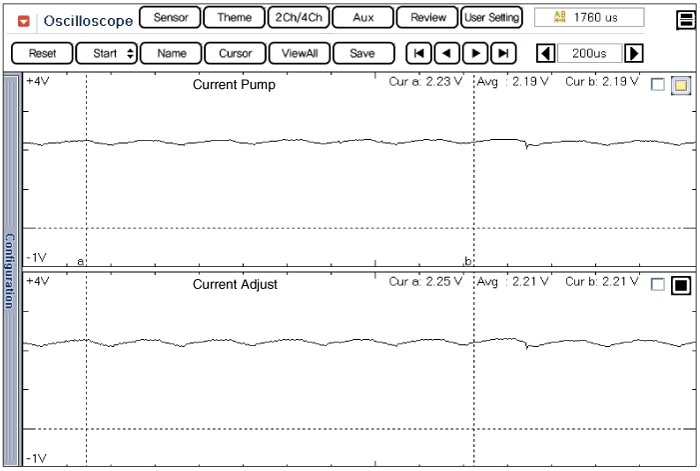

Waveform of sensor Current Pump at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically.

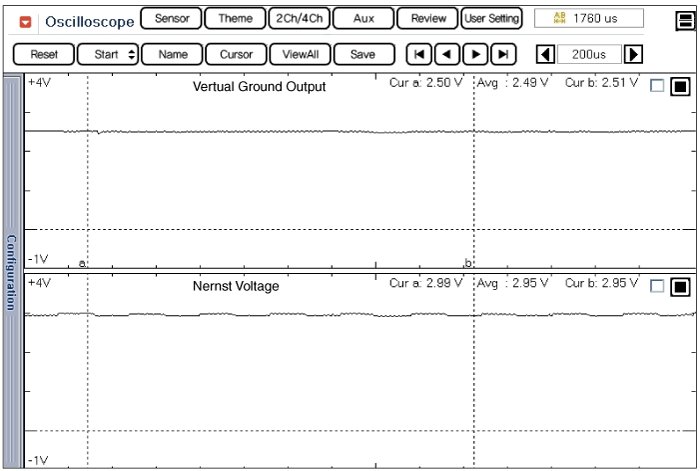

Waveform of sensor Vertual Ground Output at IG KEY "ON" and Engine running. 2.5V is displayed.
Waveform of sensor Current Adjust at IG KEY "ON" and Engine running. It fluctuates between 2V and 3V periodically. Waveform of sensor Nernst Voltage at IG KEY "ON" and Engine running. 2.9V is displayed.
