Scantool Diagnostics

Engine Control
P2229 Barometric Pressure Circuit High Input - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to DLC(Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "Barometic pressure" parameter on GDS

Specification :Approx. 1 atm is displayed

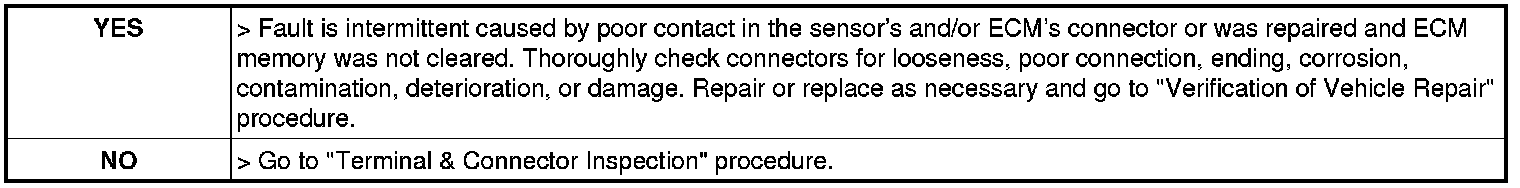

4. Is the "Barometic pressure" parameter displayed correctly?
