P2123 Throttle/Pedal Position Sensor /Switch \'D\' Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

Check APS
1. IG "OFF" and install a GDS.

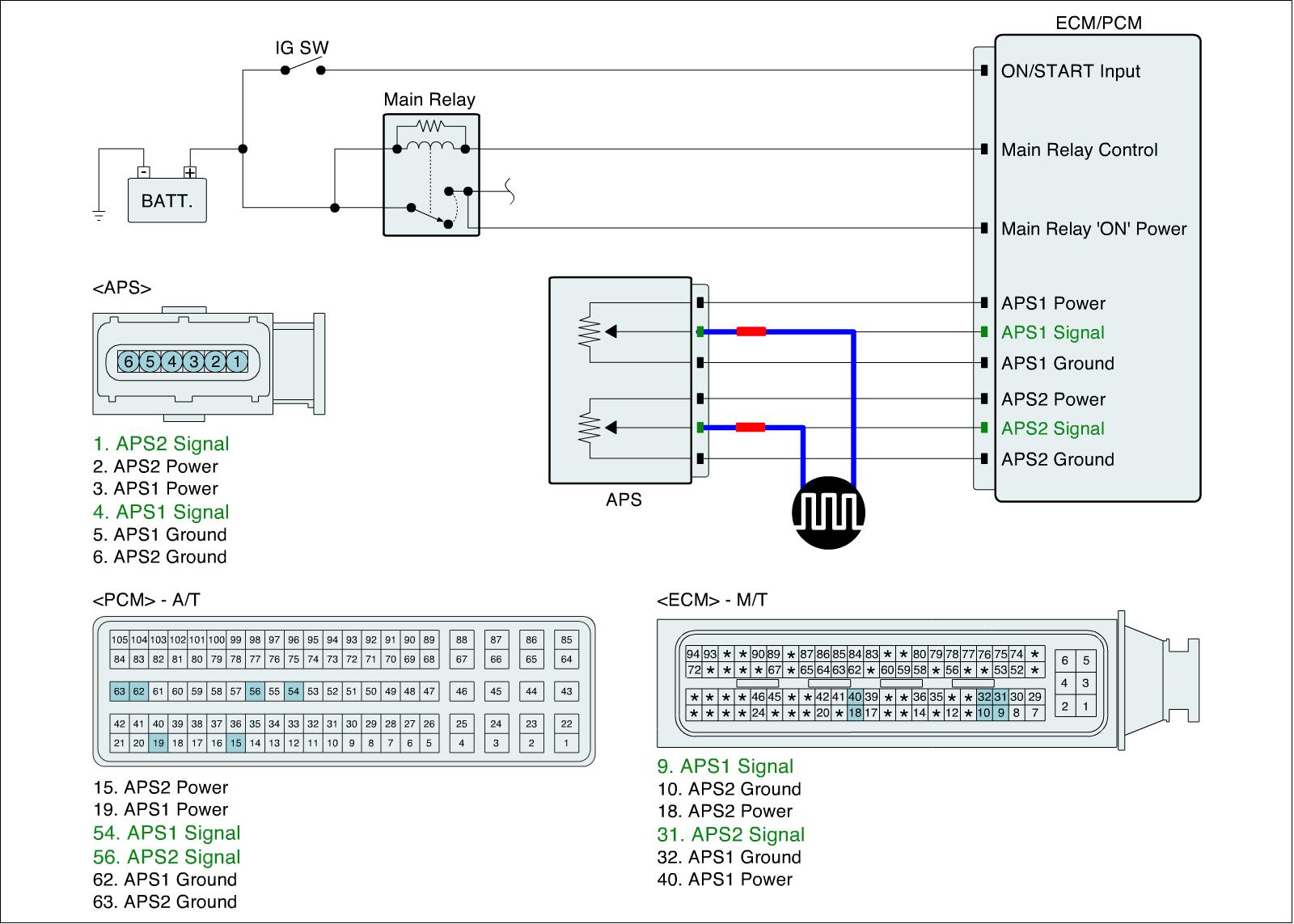

2. Connect probe to APS1 and APS2 to check signal waveform by using oscilloscope function.
3. Measure signal waveform of APS by pressing and depressing accellerator pedal.

Specification :Signal waveform will be displayed as follows.




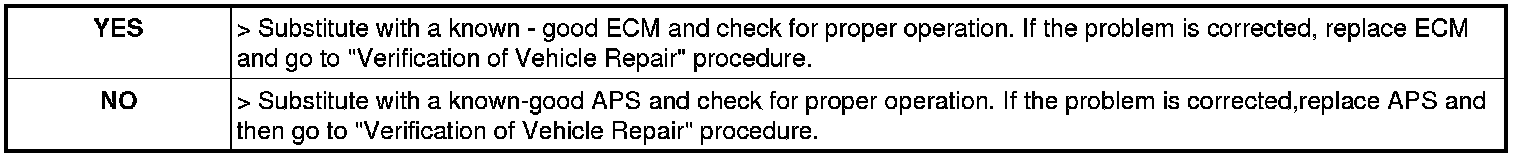

4. Is the measured signal waveform O.K?
