Component Inspection

Immobilizer
P1691 Immobilizer-Antenna Coil Error - Inspection/Repair:_:Component Inspection

Component Inspection

1. Check antenna coil.
(1) Ignition "OFF".
(2) Disconnect ICU connector.

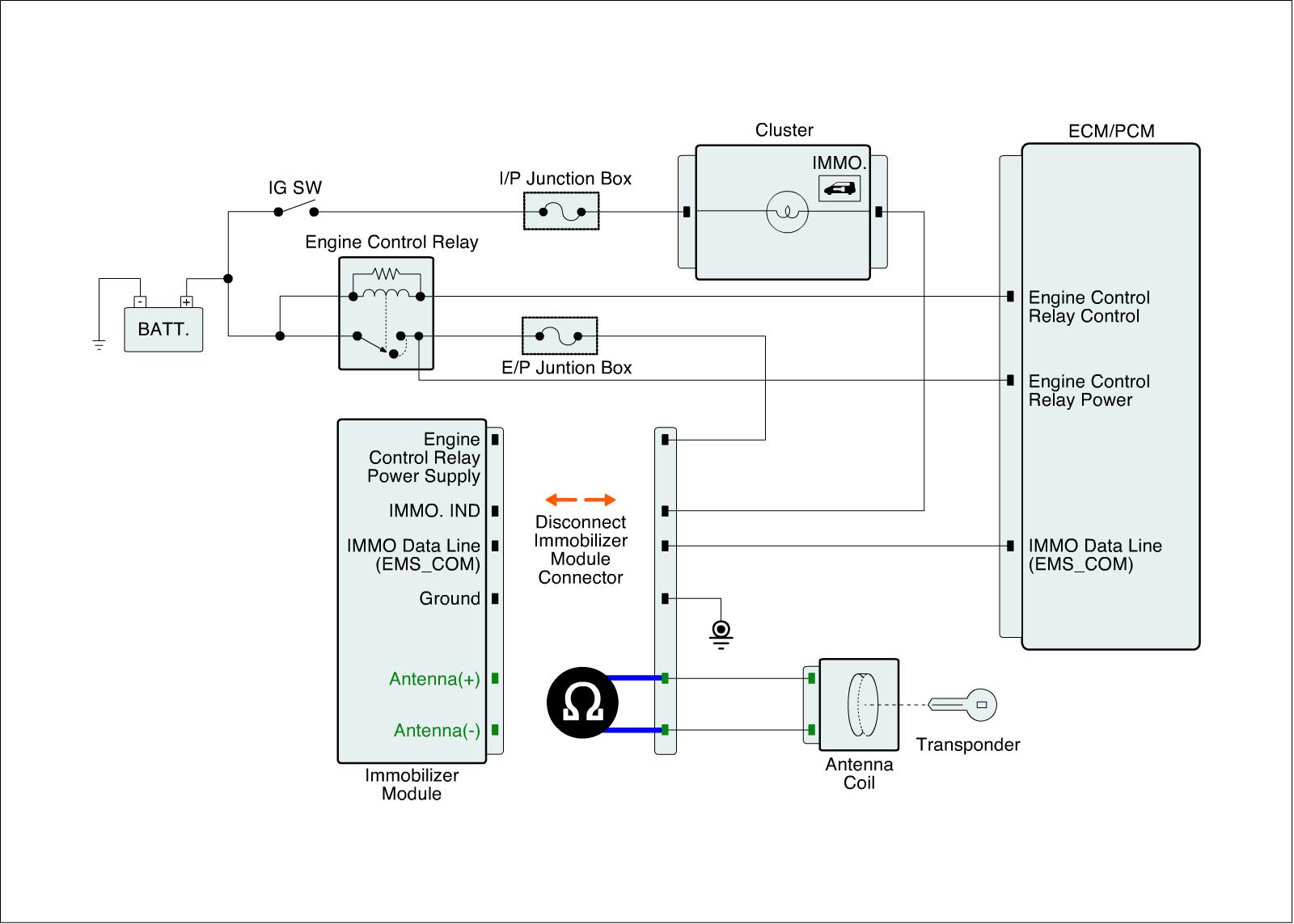

(3) Measure resistance between antenna coil(+) and (-) terminal of ICU harness connector.

Specification :Approx 7.5 Ohms

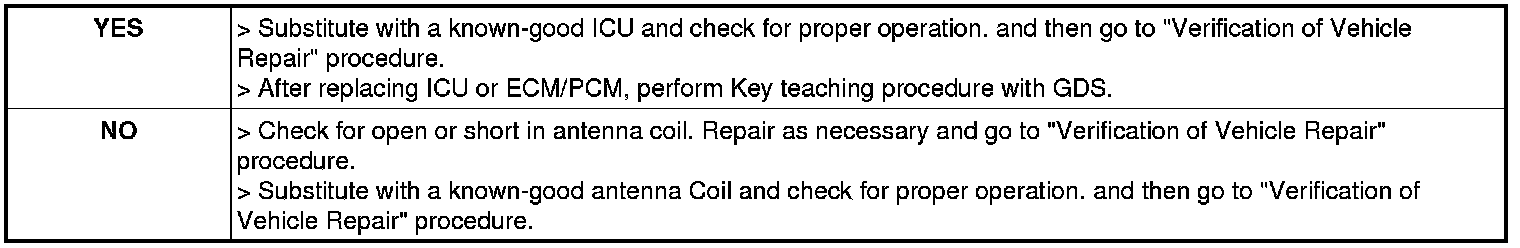

(4) Is measured resistance within specification ?
