P1690 Immobilizer-Smartra No Response - General Information

Component Location





General Description

The ECM/PCM controls the engine, in a normal way for starting and running, and starts communication with the Smart Key ECM/PCM, sending a PIN request to the Smart Key ECM/PCM and waiting for valid release message from it until the release time period has ended.
In case of Smart Key ECM/PCM immobilizer function is locked, the Smart Key ECM/PCM answer is the no release message. ECM/PCM enters in the locked state, which causes theactivation of the imobilization actions of the engine.
In case of Smart Key ECM/PCM immobilizer function state is released, the Smart Key ECM/PCM answer is the release message, including the information Smart Key ECM/PCM inlearnt mode and the PIN code.

DTC Description

DTC P1690 is set ECM/PCM has not received any signals related starting engine, Although ECM/PCM sends wake up signal to Smart Key ECM/PCM.

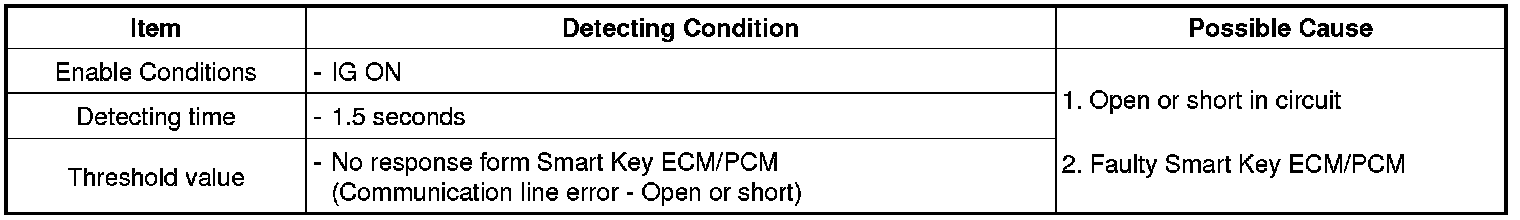

DTC Detecting Condition





Diagnostic Circuit Diagram
