Component Inspection

Automatic Transaxle
P0748 Pressure Control Solenoid Valve(VFS) \'A\' Electrical - Inspection/Repair:_:Component Inspection

Component Inspection

Pressure control solenoid valve(LP-VFS) Inspection
1. Ignition off & Engine Off.
2. Disconnect "ATM solenoid valve connector.

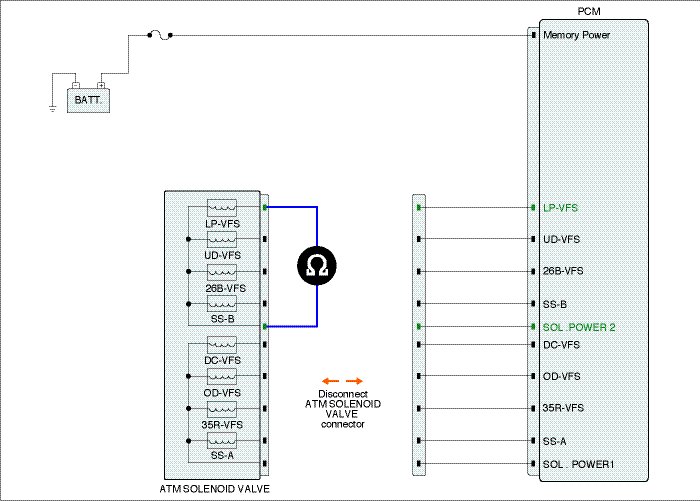

3. Measure a resistance between "Pressure control solenoid valve(LP-VFS) " terminal and power at ATM solenoid valve connector.

Specification :5.1 ± 0.3 Ohms( 25°C )

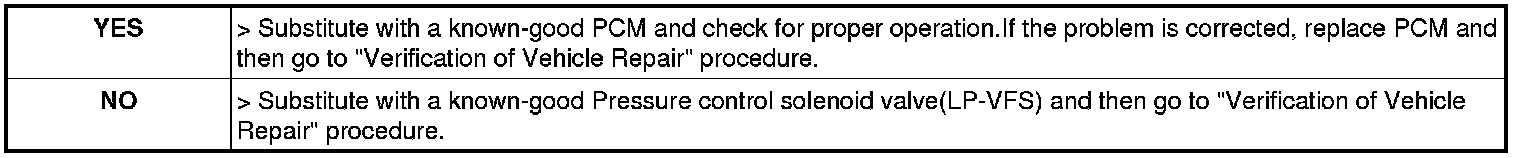

4. Is measured resistance within specification?
