Component Inspection





Engine Control
P0661 Intake Manifold Tuning Valve Control Circuit Low (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

Check VIS
1. IG "OFF" and disconnect VIS connector.
2. Measure resistance between power and control terminals of VIS connector.(Component side)

Specification :30 - 35 Ohms (22°C/71.6°F)

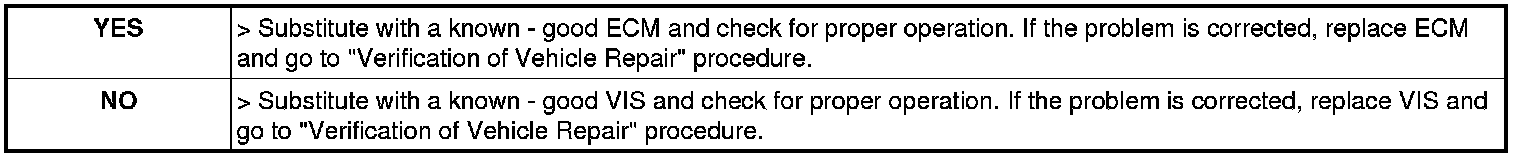

3. Is the measured resistance within specification?
