General Information

Engine Control
P062D Fuel Injector Driver Circuit Performance (Bank 1) - General Information

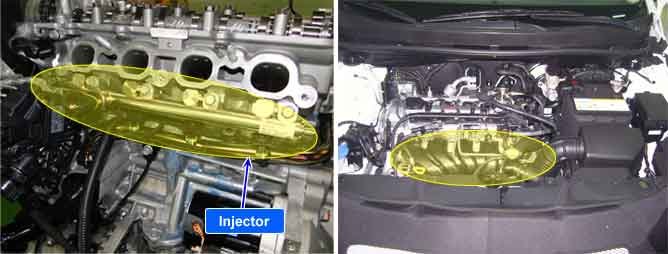

Component Location





General Description

Injectors jet out high pressure fuel caculated by ECM to each cyliders. Direct and separated injections improve fuel efficiency and engine power.

DTC Description

ECM shows P062D when the drive circuit of GDI injectors (1, 4) is abnormal.

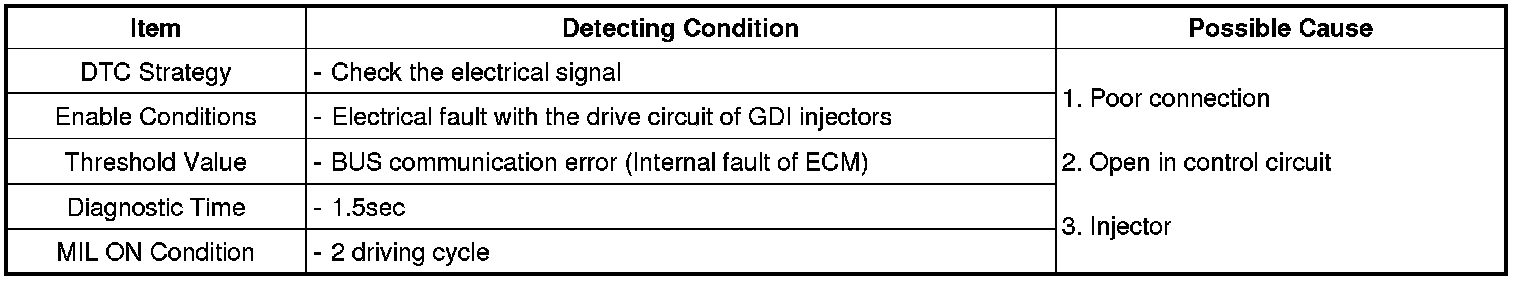

DTC Detecting Condition

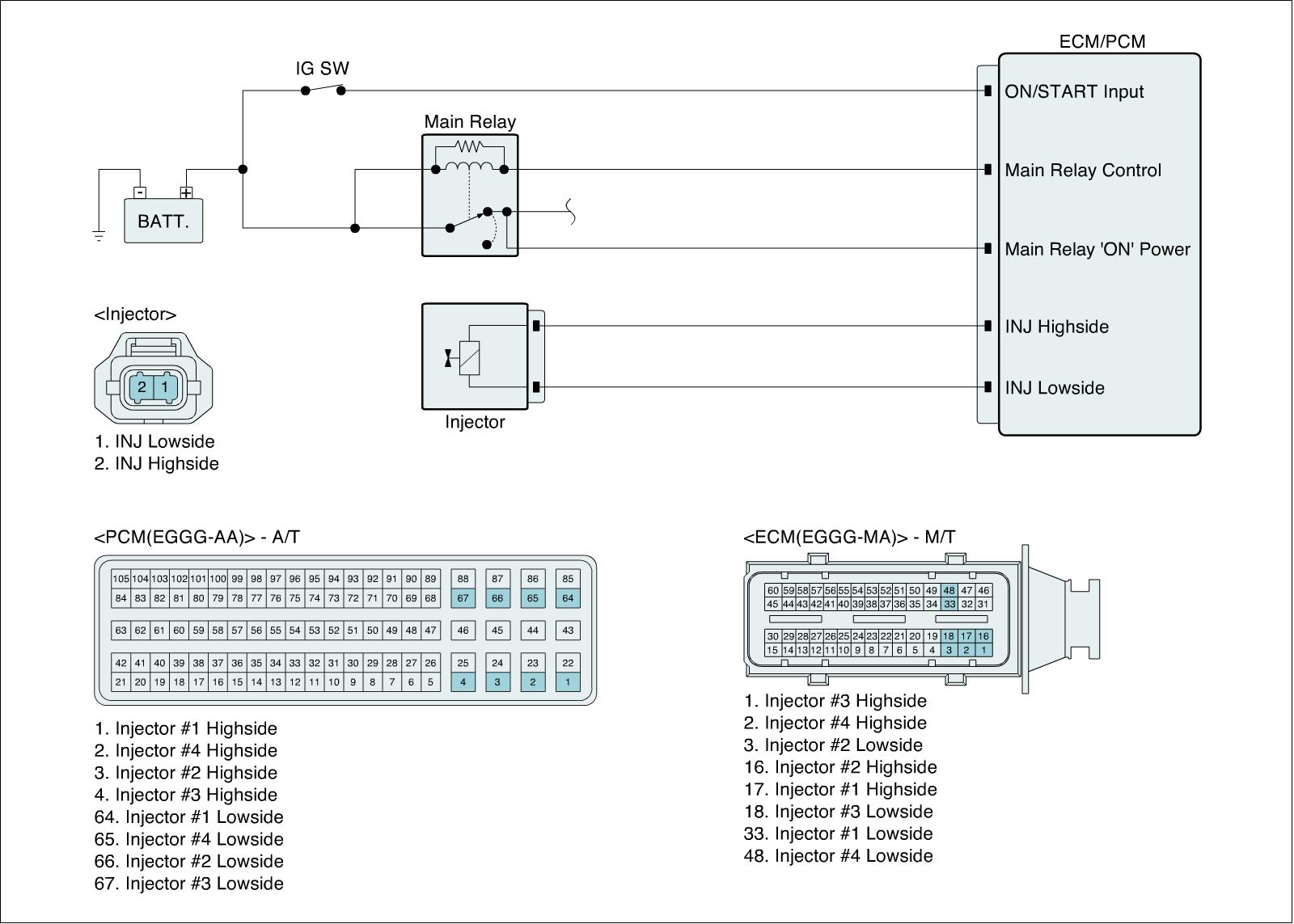

Diagnostic Circuit Diagram





Signal Waveform & Data

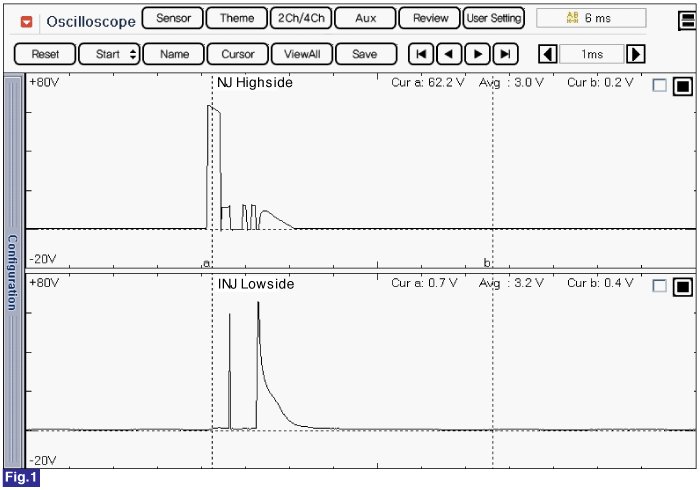

Fig.1) Normal waveform of ING at idle.
