P0564 Cruise Control Multi-Function Input A Circuit - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to DLC(Data Link Cable).
2. Warm up the engine to normal operating temperature.

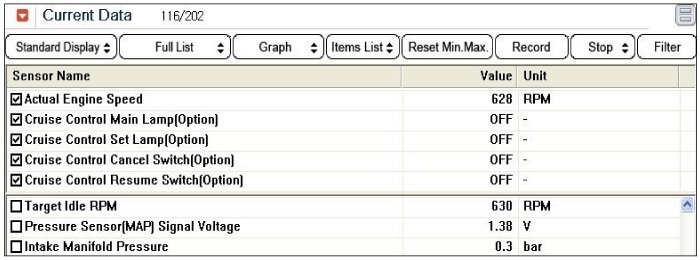

3. Monitor the "Cruise Control" parameters on the GDS.




Check the change of the cruise control sensor data , turning on and off the cruise control switch.
If the DTC related with CAN communication error (U0001) occurs, repair it first.

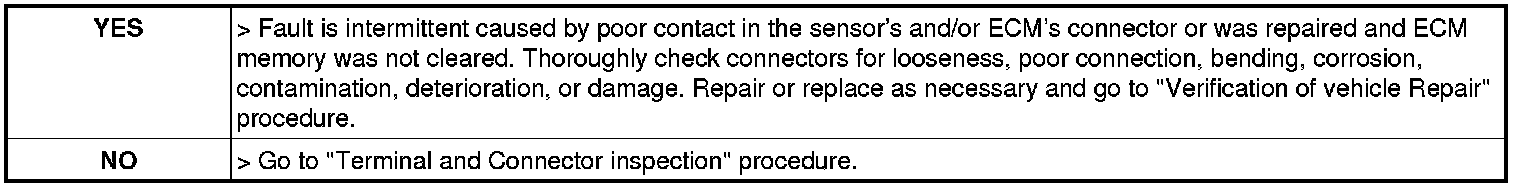

4. Is parameter displayed within specifications?
