Component Inspection

Engine Control
P0564 Cruise Control Multi-Function Input A Circuit - Inspection/Repair:_:Component Inspection

Component Inspection

Check auto cruise switch
1. IG "OFF" and disconnect Cruise switch connector.
2. Measure resistance between signal and power terminals of Cruise switch connector with each switch depressed.(Component side)
3. Measure resistance between signal and ground terminals of Cruise remocon connector with each switch depressed.(Component side)

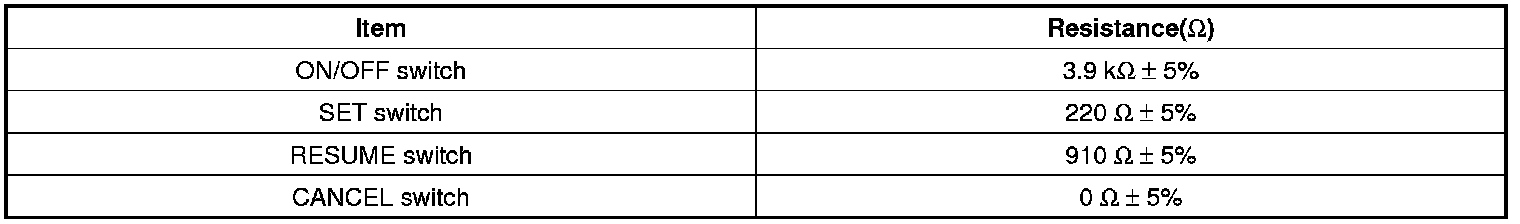

Specification :

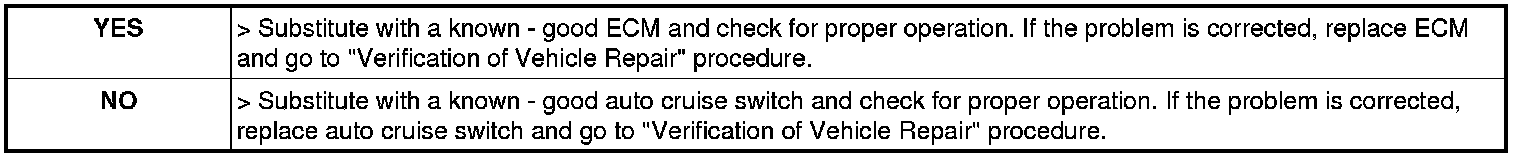

4. Is the measured resistance within specification?
