P0563 System Voltage High - General Information

Component Location





General Description

The purpose of the System Voltage is to detect an excessively low or high system voltage that may be caused by a malfunctioning charging system.
System Voltage is the ignition voltage potential at the Powertrain Control Module (ECM)ECM measures and compares voltage from ignition key and each relay. With this mechanism, ECM knows if the main relay switch turns on after IG on or if turns OFF after IG off.

DTC Description

If the system voltage is over 17 V during 0.2 sec, ECM sets DTC P0563.

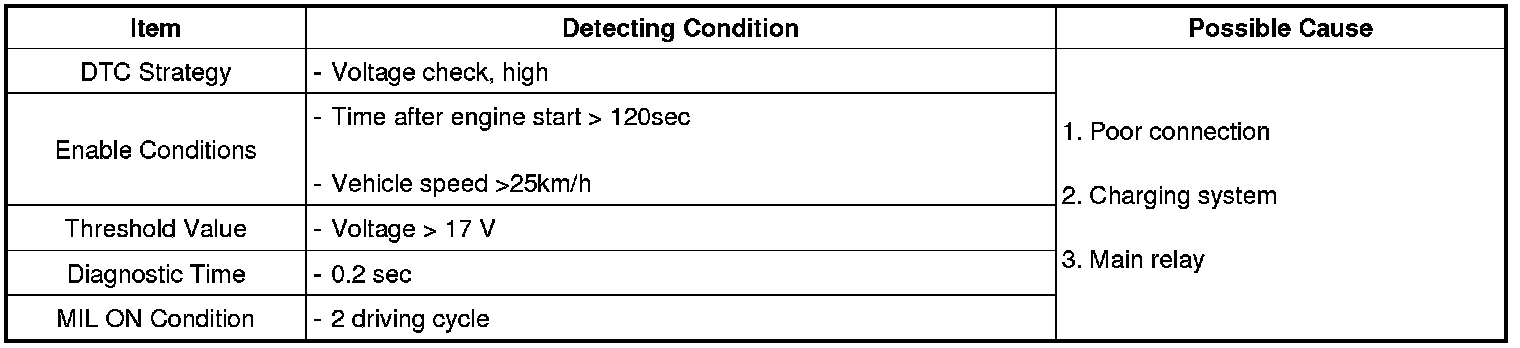

DTC Detecting Condition





Diagnostic Circuit Diagram
