Component Inspection

Engine Control
P052A Cold Start \'A\' Camshaft Position Timing Over-Advanced (Bank 1 In-cam) - Inspection/Repair:_:Component Inspection

System Inspection

Check OCV
1. Connect GDS to Data Link Connector(DLC).
2. IG KEY "ON" & ENG "OFF"
3. Perform "Actuation Test" for OCV.

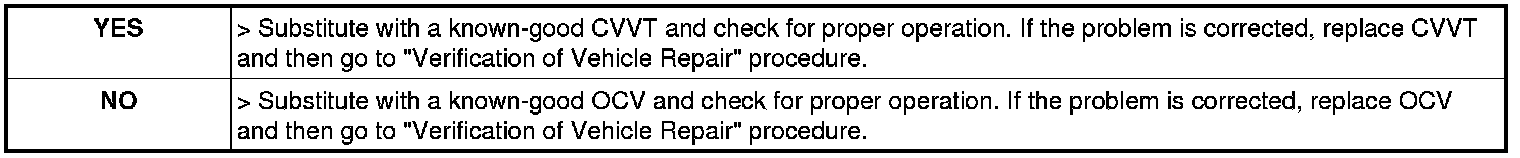

4. Does the OCV work normally? (Check cliking sound)
