P050B Cold Start Ignition Timing Performance - General Information

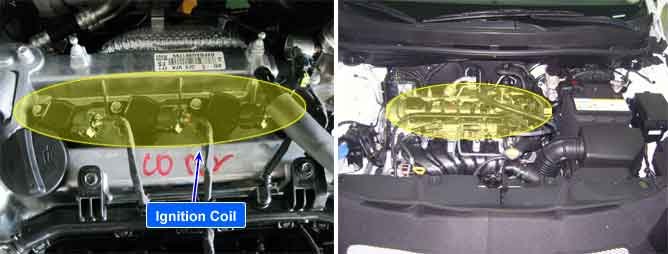

Component Location





General Description

With the ignition switch in the ON or START position, voltage is applied to the ignition coil. Each ignition coil consists of two coils, a primary and secondary coil. The coils are mounted on top of the spark plugs. To energizing the primary ignition coils, the Engine Control Module provides the ground for the primary circuit. The ECM uses the crankshaft position sensor and camshaft position sensor signal to time the energizing of the coil. When a primary ignition coil is energized and de-energized, the secondary coil produces a high voltage spike to the attached spark plug.

DTC Description

ECM sets P050B when the ignition coil gives lower peroformance during cold start.

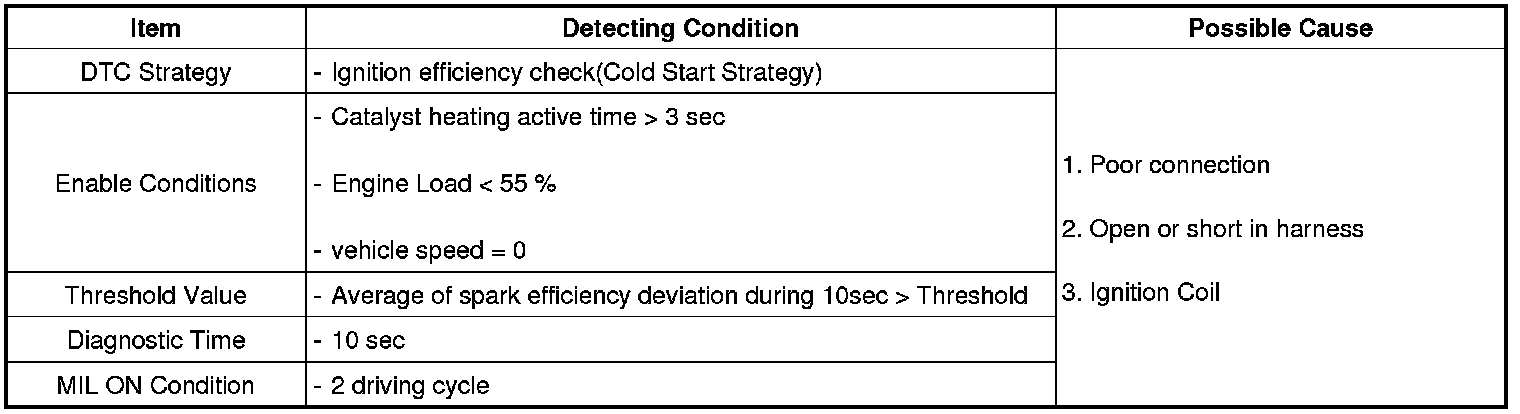

DTC Detecting Condition

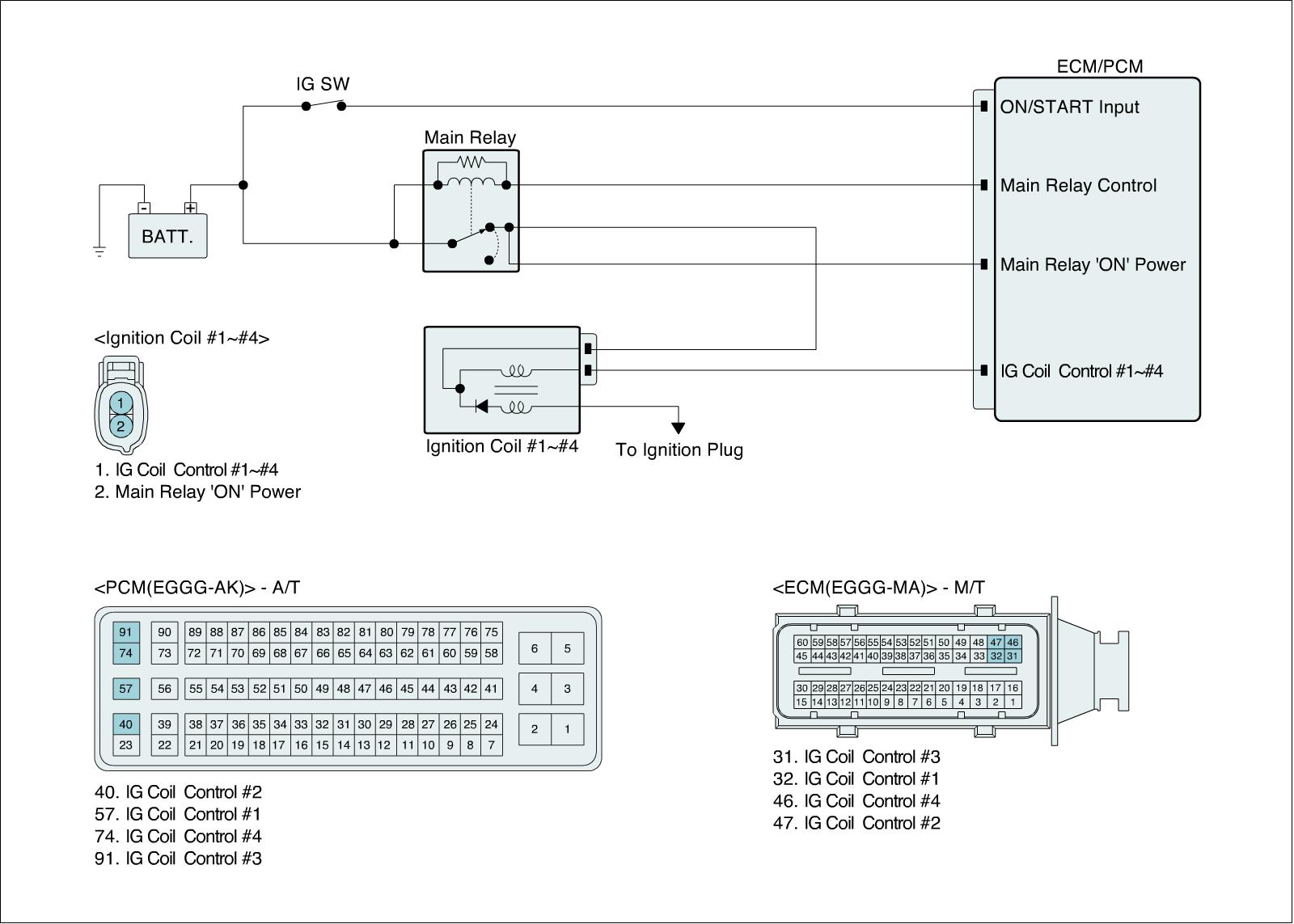

Diagnostic Circuit Diagram
