P0463 Fuel Level Sensor 'A' Circuit High Input - Inspection/Repair:_:Component Inspection

Component Inspection

Check FLS resistance

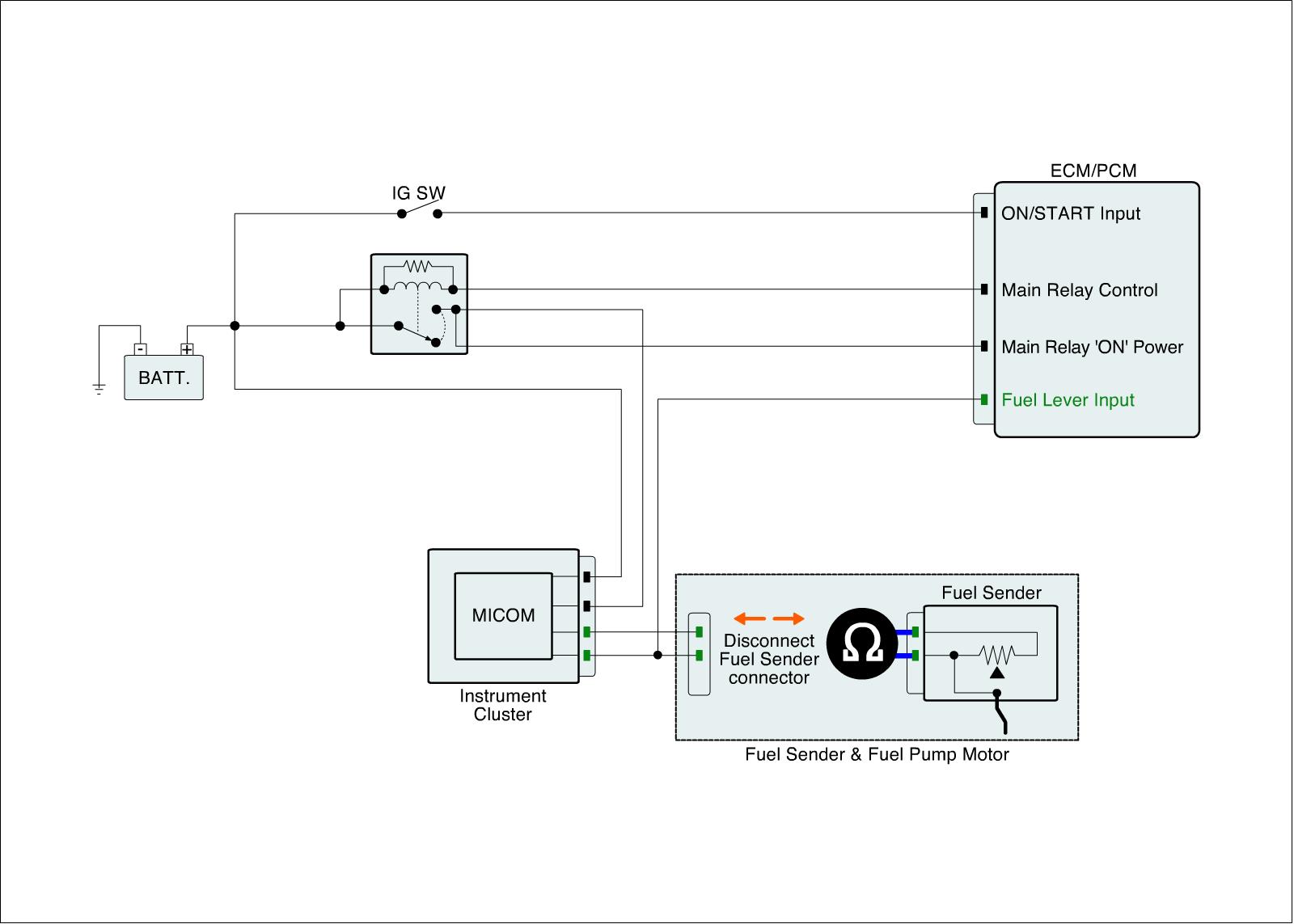

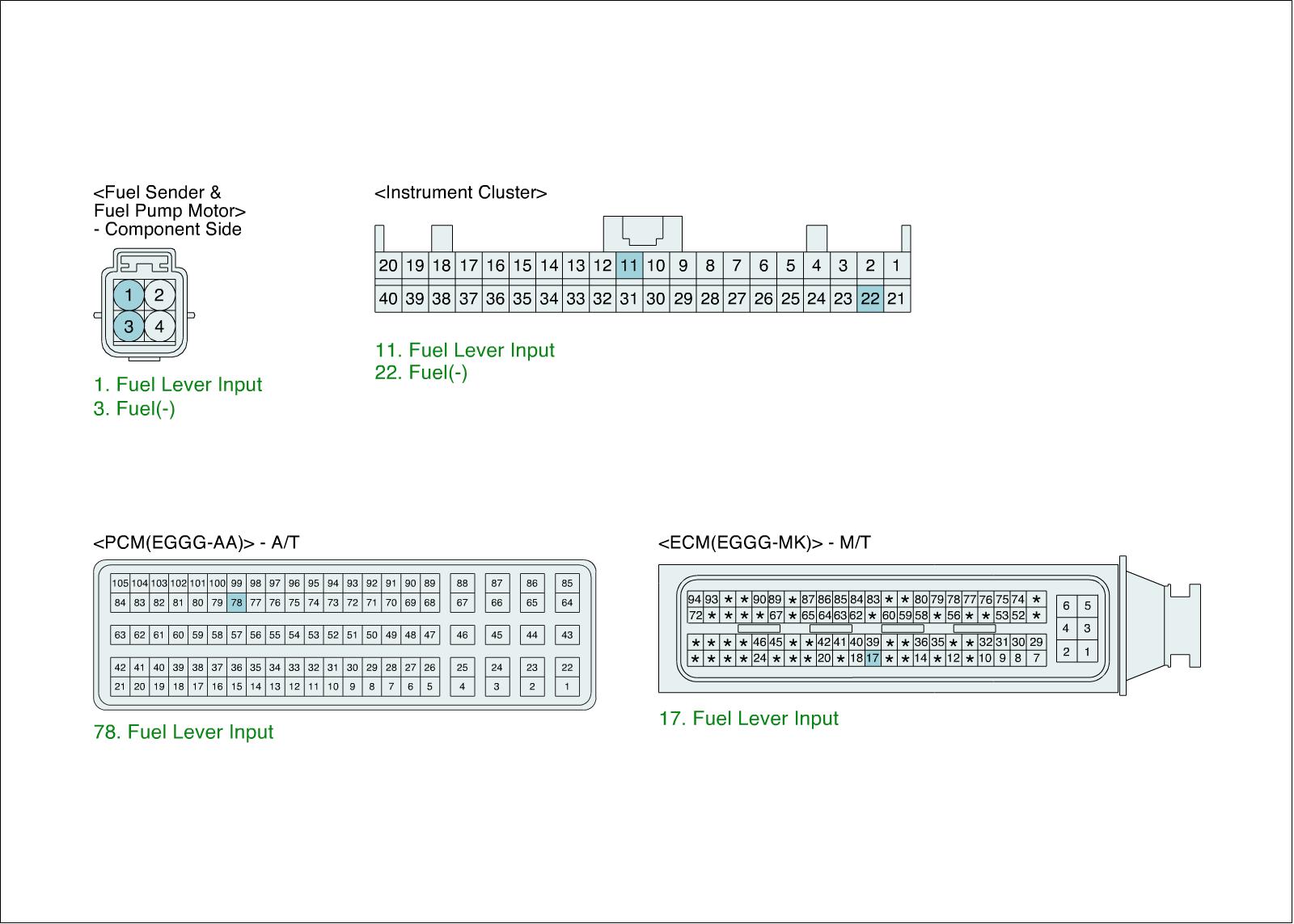

1. IG "OFF" and Disconnect Fuel Sender & Fuel Pump Motor connector.
2. Remove these senders from fuel tank and measure the reistance of Fuel sender while lifting up and down the fuel level float.

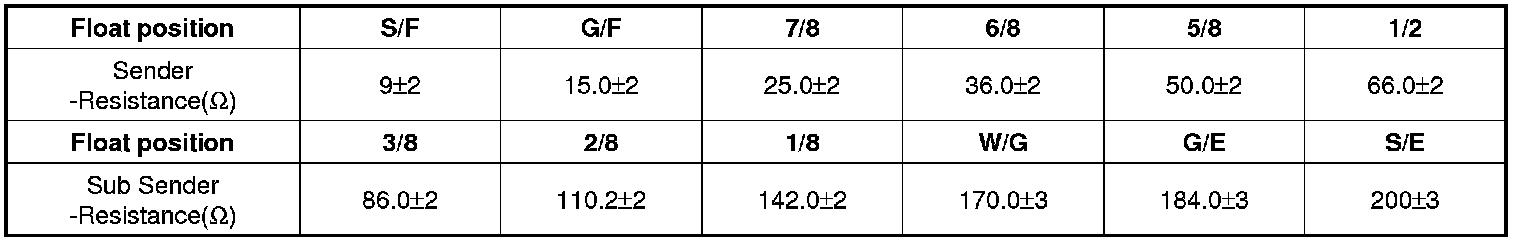

Specification :













3. Does the resistance of FLS change as lifting up and down the fuel level float ?
