W/Harness Inspection

Engine Control
P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted - Inspection/Repair:_:W/Harness Inspection

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

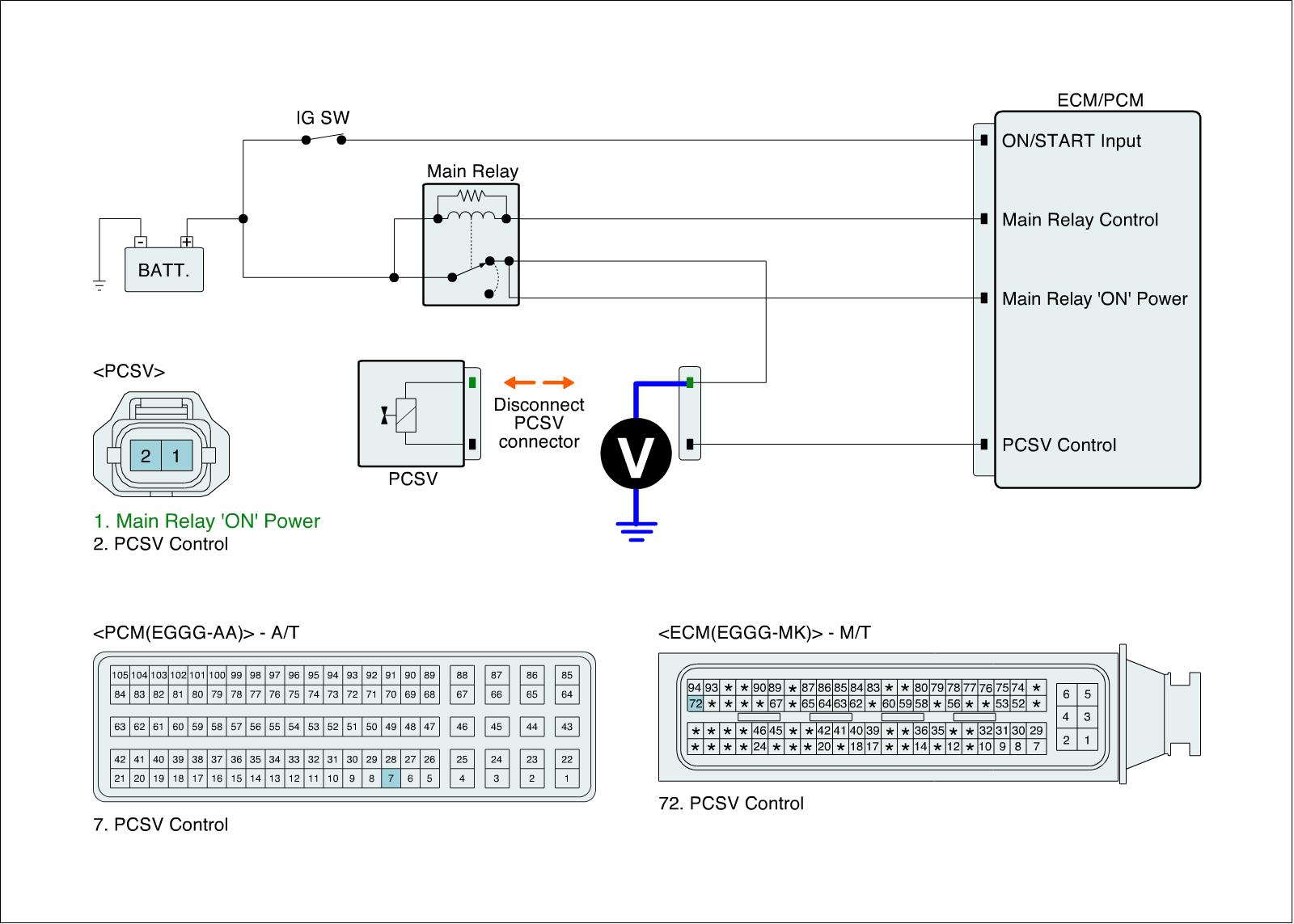

Power Circuit Inspection

Check Open or Short in power circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.
3. IG KEY "ON" & ENG "OFF"
4. Measure the voltage between power terminal of PCSV harness connector and chassis ground.

Specification :Approx B+




5. Is the measured voltage within specification ?






Control Circuit Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between control terminal of PCSV harness connector and chassis ground.

Specification :Approx 3.5V




5. Is the measured voltage within specification ?
