Engine Control
P0444 Evaporative Emission System-Purge Control Valve Circuit Open - Inspection/Repair:_:Component Inspection

Component Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect PCSV connector.

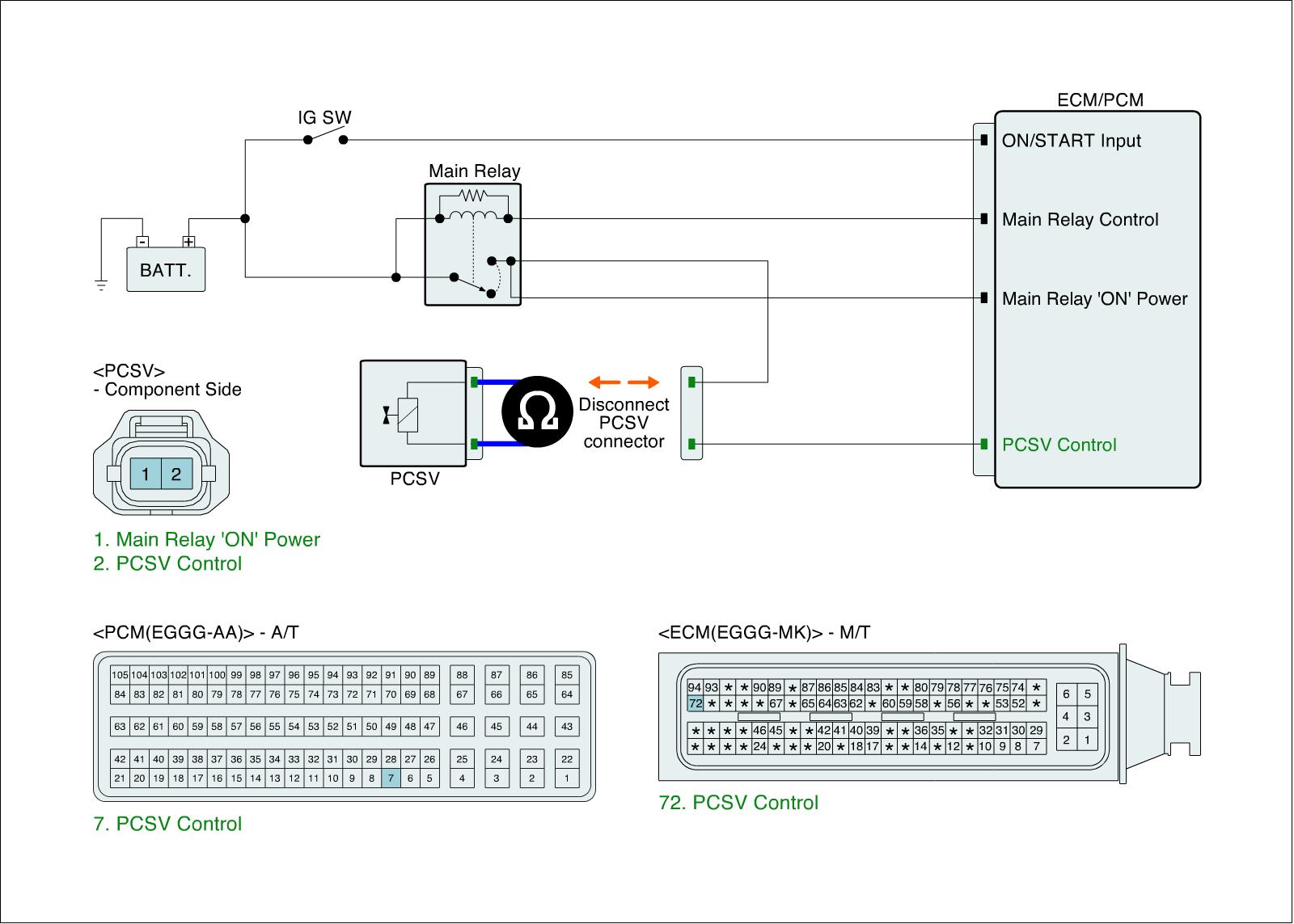

3. Measure the resistance between power terminal and control terminal of PCSV harness connector.(Component side)
Specification :

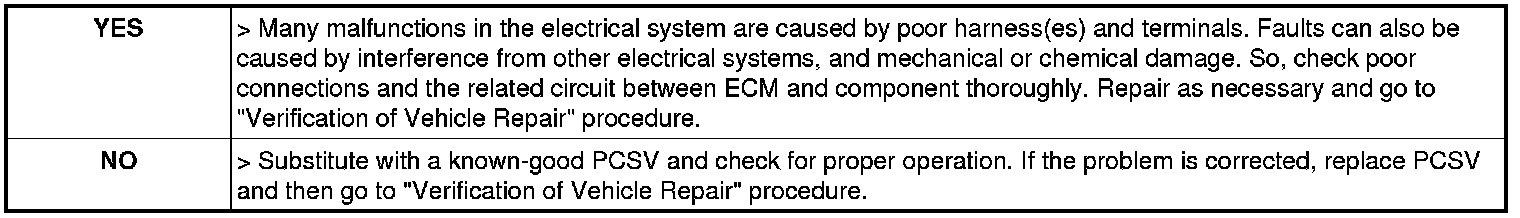

4. Is the measured resistance within specification ?
