Component Inspection

Engine Control
P0441 Evaporative Emission System Incorrect Purge Flow - Inspection/Repair:_:Component Inspection

Terminal & Connector Inspection

Check PCSV for leakage
1. IG "OFF".
2. Disconnect the hose leading from the PCSV to the intake manifold at PCSV.
3. Apply a vacuum at the nipple and verify that the PCSV holds vacuum.
4. IG "ON" and perform ACTUATION TEST for PCSV with GDS. (should hear a faint click from PCSV)
5. Vacuum should be released.
6. Repeat this procedure 4 or 5 times to ensure PCSV reliability.

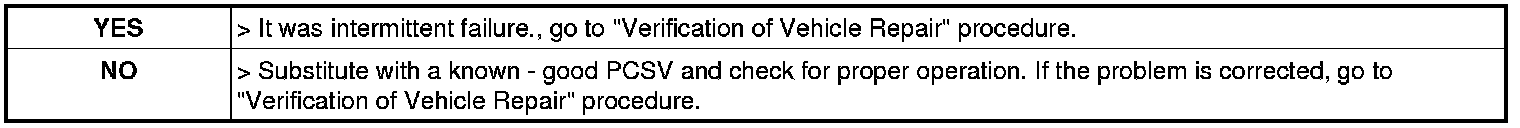

7. Is the PCSV working properly ?
