P0336 Crankshaft Position Sensor \'A\' Circuit Range/Performance - General Information

Component Location





General Description

A Crankshaft Position Sensor (CKPS) is a magnetic type sensor that generates voltage using a sensor and a target wheel mounted on the crankshaft; there are 58 slots in the target wheel where one is longer than the others. When the slot in the wheel aligns with the sensor, the sensor voltage outputs low. When the metal (tooth) in the wheel aligns with the sensor, the sensor voltage outputs high. During one crankshaft rotation there are 58 rectangular signals and one longer signal. The ECM calculates engine RPM by using the sensor' s signal and controls the injection duration and the ignition timing. Using the signal differences caused by the longer slot, the ECM identifies which cylinder is at top dead center.

DTC Description

If CKPS cannot find reference mark 14 or more times after starting, P0336 is set.

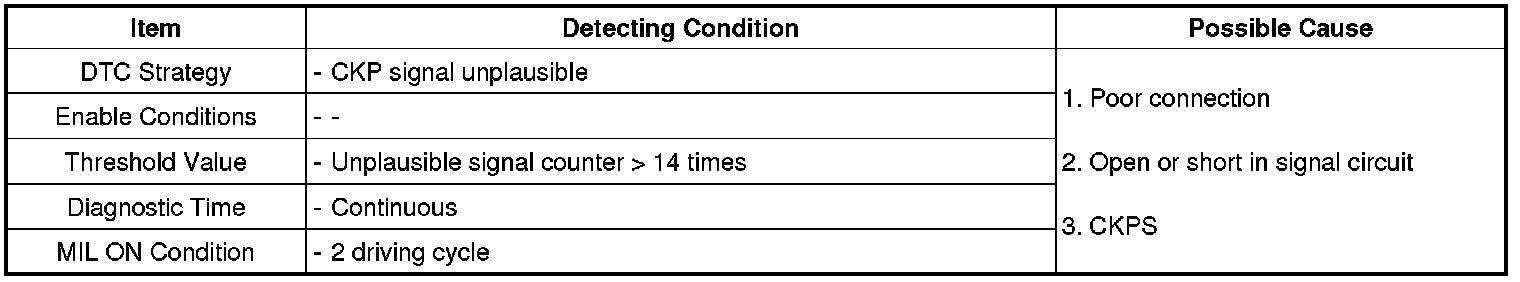

DTC Detecting Condition





Diagnostic Circuit Diagram










Signal Waveform & Data








This example shows a typical Crankshaft Position Sensor(CKPS) waveform at idle. The ECM controls the injection and ignition timing by using these signals.
