P0335 Crankshaft Position Sensor \'A\' Circuit - Inspection/Repair:_:Component Inspection

Component Inspection

Check CKPS.
1. IG KEY "OFF".

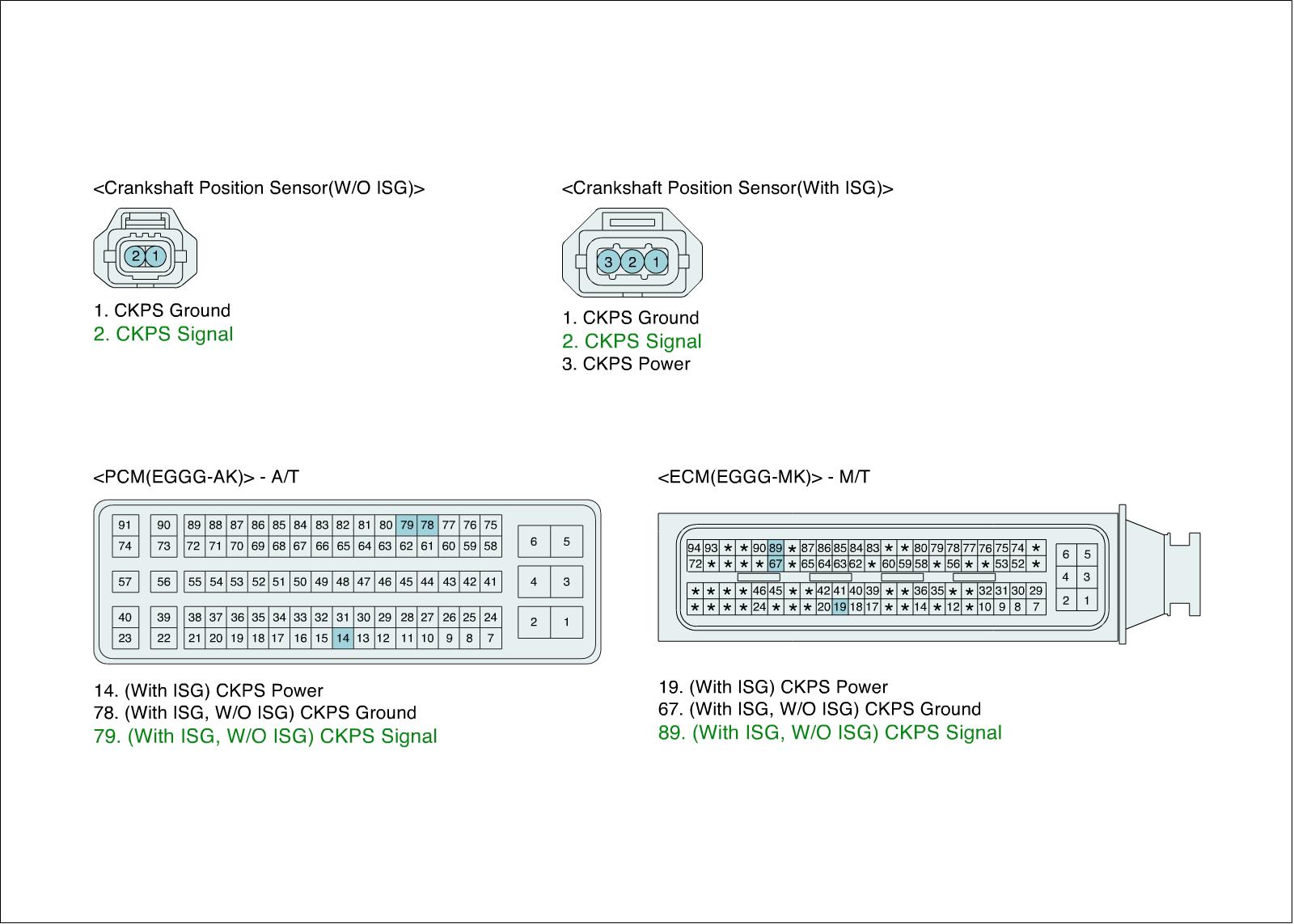

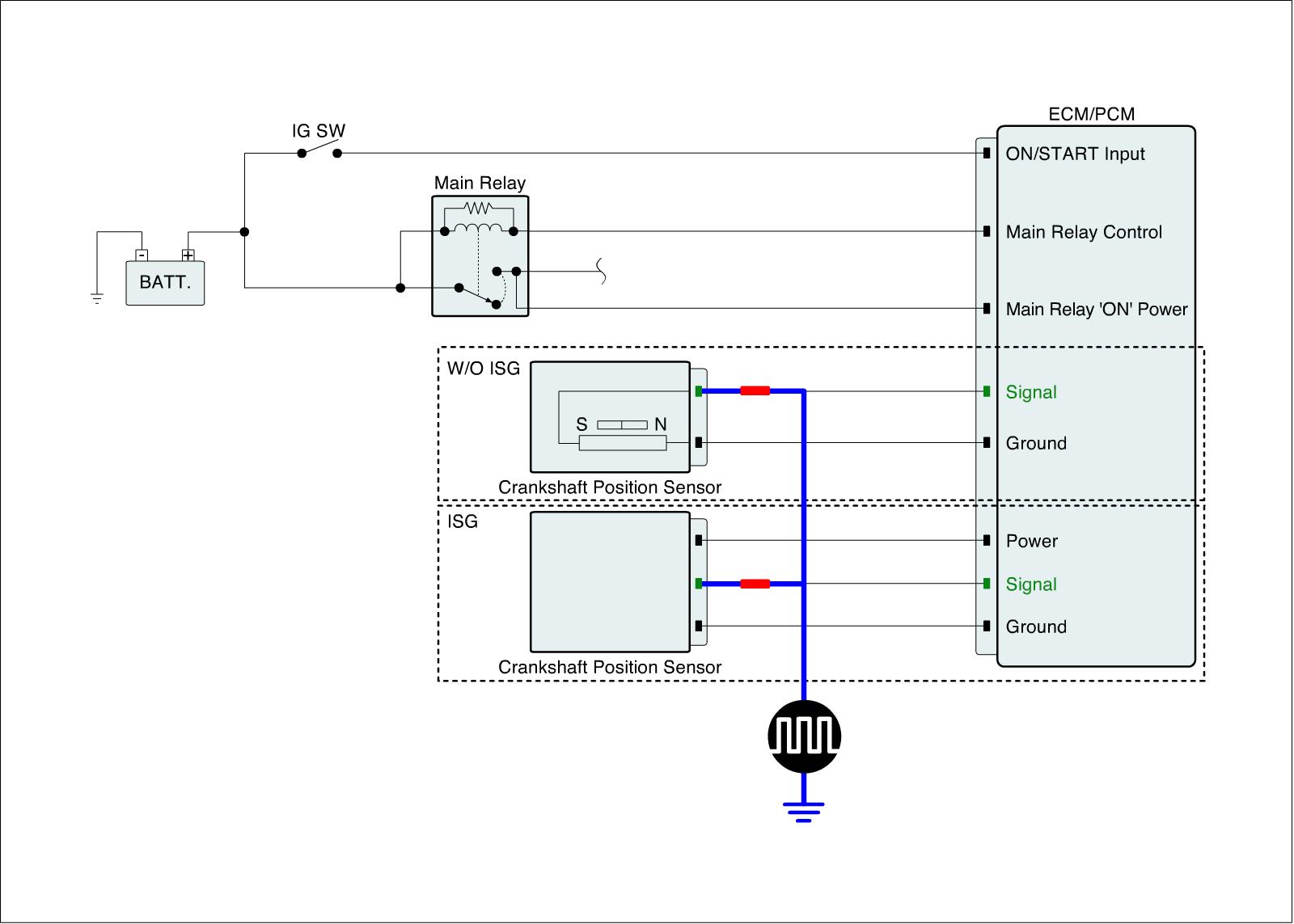

2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with signal terminal of CKPS harness connector.
3. Engine start. And check the signal waveforms.

Specification :Refer to Signal Waveform & Data

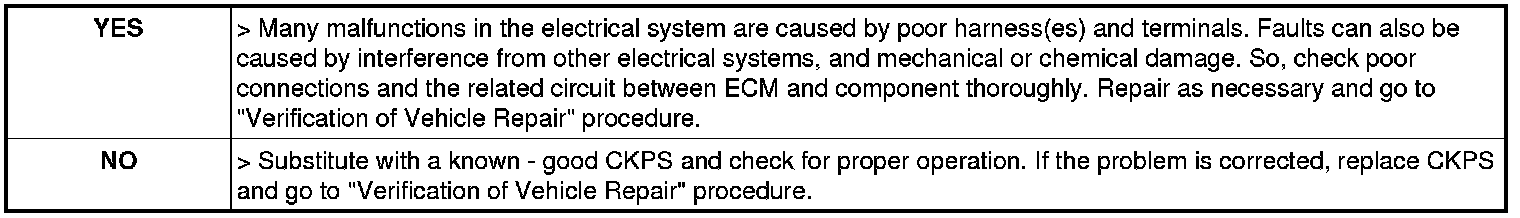

4. Is the measured signal waveforms of CKPS normal?
