Scantool Diagnostics





Engine Control
P0300 Random/Multiple Cylinder Misfire Detected - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. Warm up the engine to normal operating temperature.

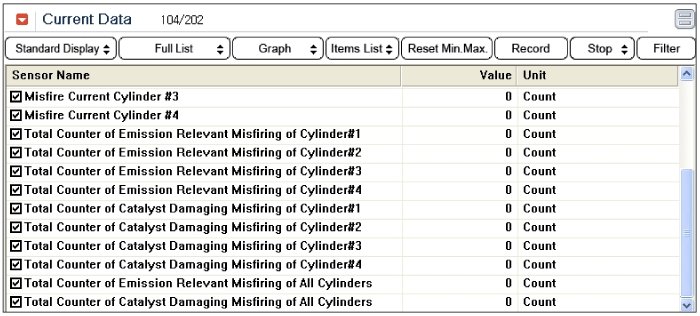

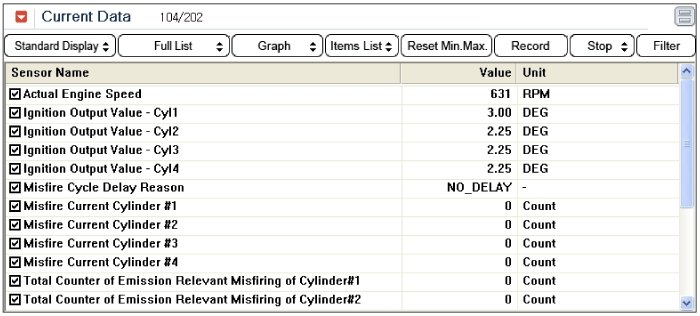

3. Monitor the "Parameters related to Ignition and Misfire" on the GDS.

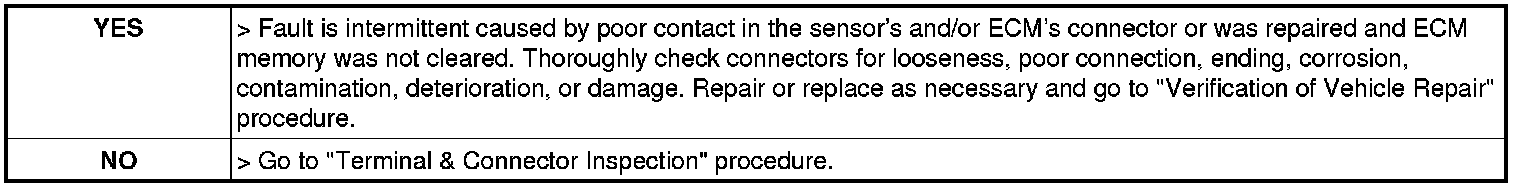

4. Are the parameters displayed correctly ?
