Component Inspection

Engine Control
P0262 Cylinder 1 Injector Circuit High - Inspection/Repair:_:Component Inspection

Component Inspection

Check Injector
1. Ignition "OFF".
2. Disconnect injectors.
3. Check clog on injectors.
4. Measure the resistance between power and control terminal of injectors(Component side).
Specification :

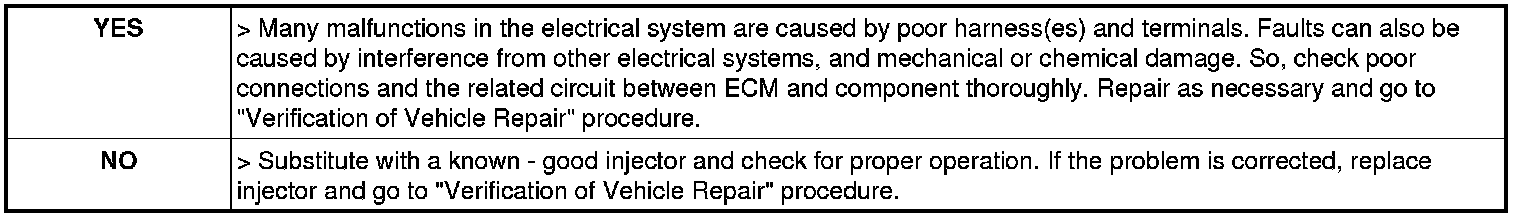

5. Is the measured resistance within specifications?
