Component Inspection

Engine Control
P0221 Throttle/Pedal Position Sensor/Switch \'B\' Circuit Range/Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check TPS
1. IG KEY "OFF".(Don't disconnect sensors.)
2. Select "Vehicle Scopemeter" in the menu, and connect channel A, B of GDS with signal terminal TPS1, 2 harness connector.
3. IG KEY "ON". And check the signal waveforms with stepping on accelerator pedal.

Specification :Refer to Signal Waveform & Data

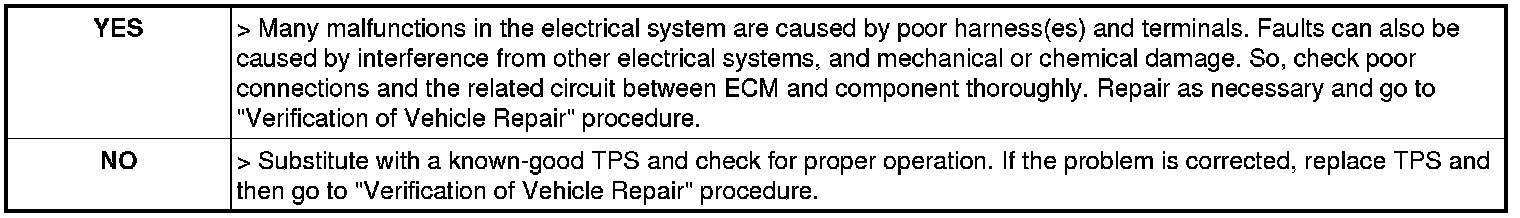

4. Is the measured signal waveform O.K ?
