Component Inspection

Engine Control
P0138 O2 Sensor Circuit High Voltage (Bank 1 / Sensor 2) - Inspection/Repair:_:Component Inspection

Component Inspection

Visual Check
1. IG KEY "OFF".
2. Disconnect HO2S(S2) connector.
3. Check that HO2S(S2) is contaminated or damaged by foreign materials.

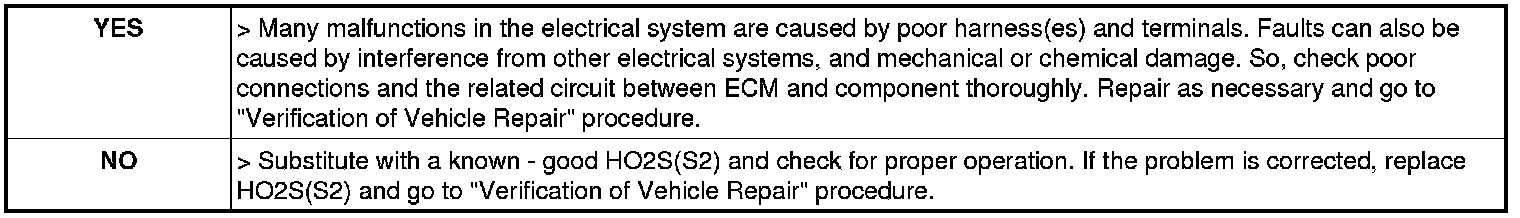

4. Has a problem been found ?
