Component Inspection

Engine Control
P0116 Engine Coolant Temperature Circuit Range / Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check ECTS resistance
1. IG KEY "OFF".
2. Disconnect ECTS connector.

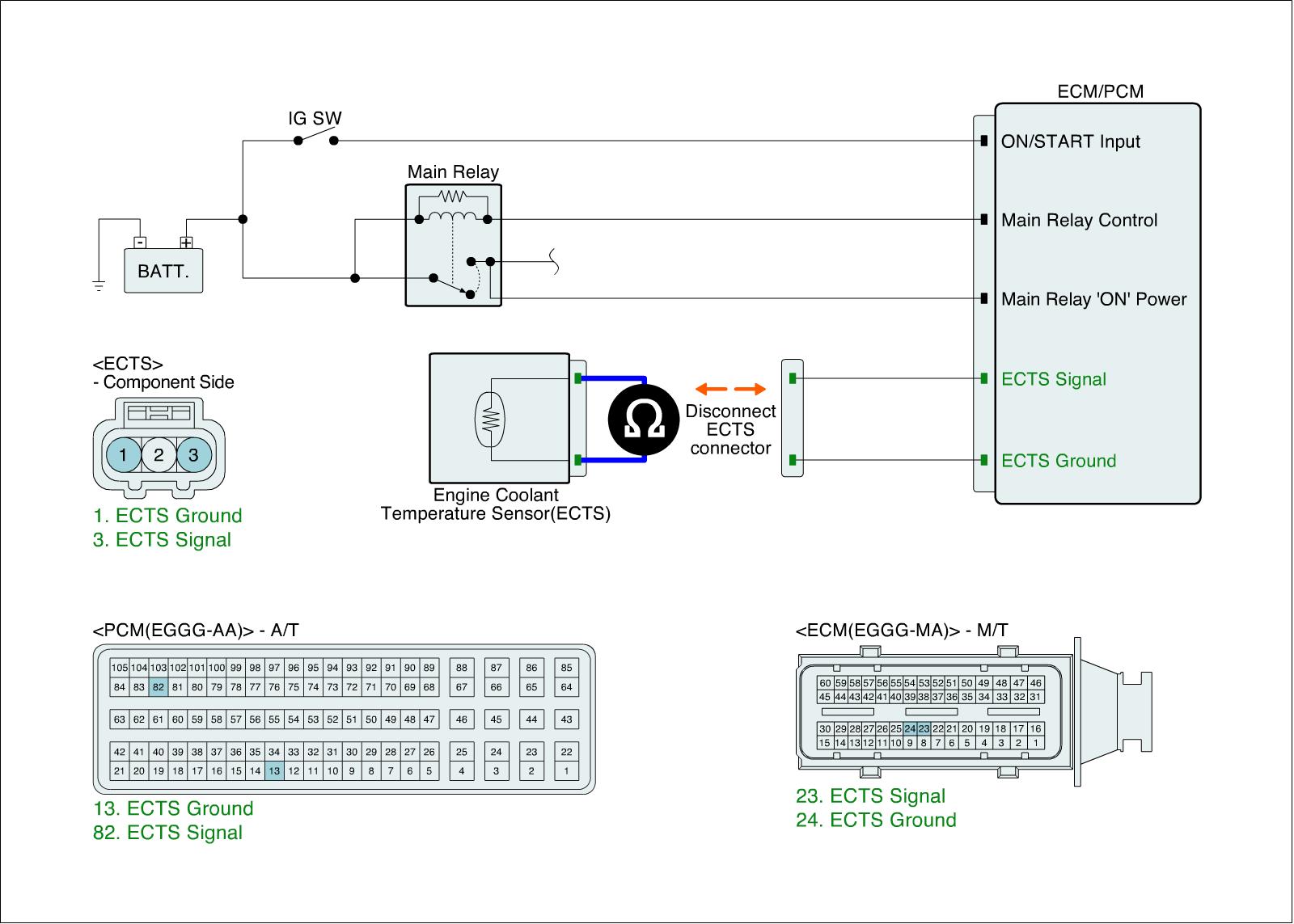

3. Measure resistance between signal and ground terminal of ECTS connector(Component Side).

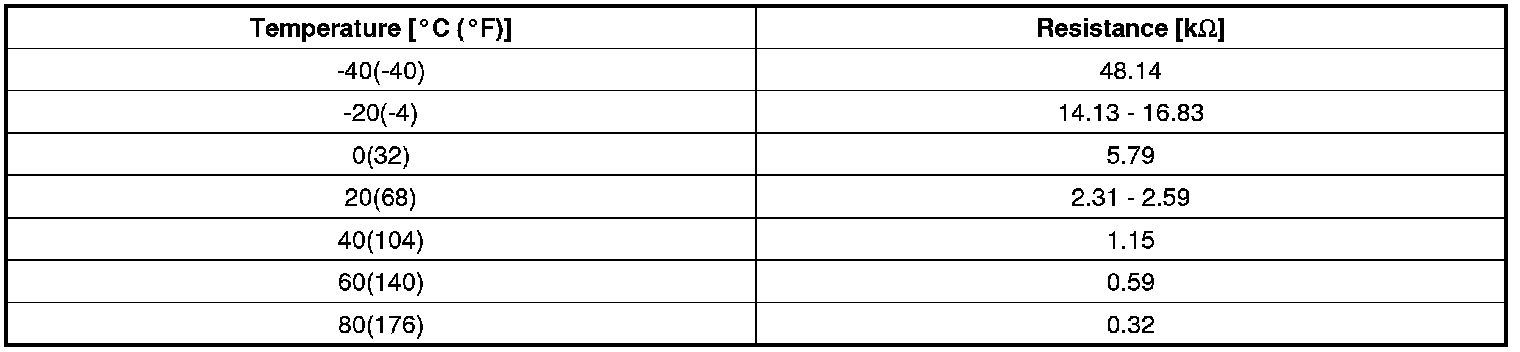

Specification :

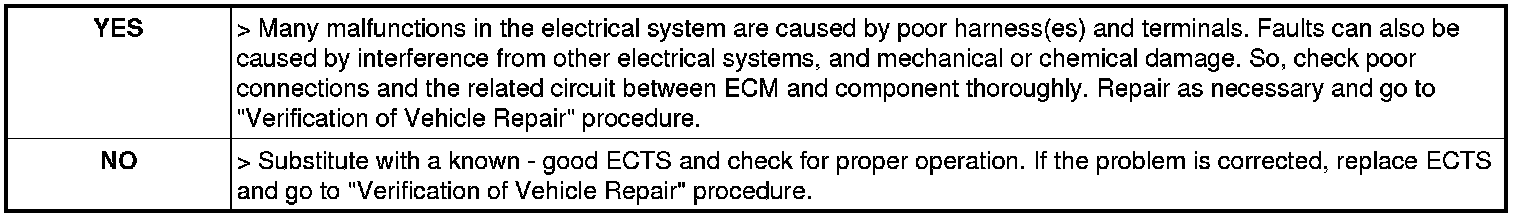

4. Is the measured resistance within specification?
