Component Inspection

Engine Control
P0111 Intake Air Temperature Sensor 1 Circuit Range / Performance - Inspection/Repair:_:Component Inspection

Component Inspection

Check IATS resistance
1. IG KEY "OFF".
2. Disconnect IATS connector.

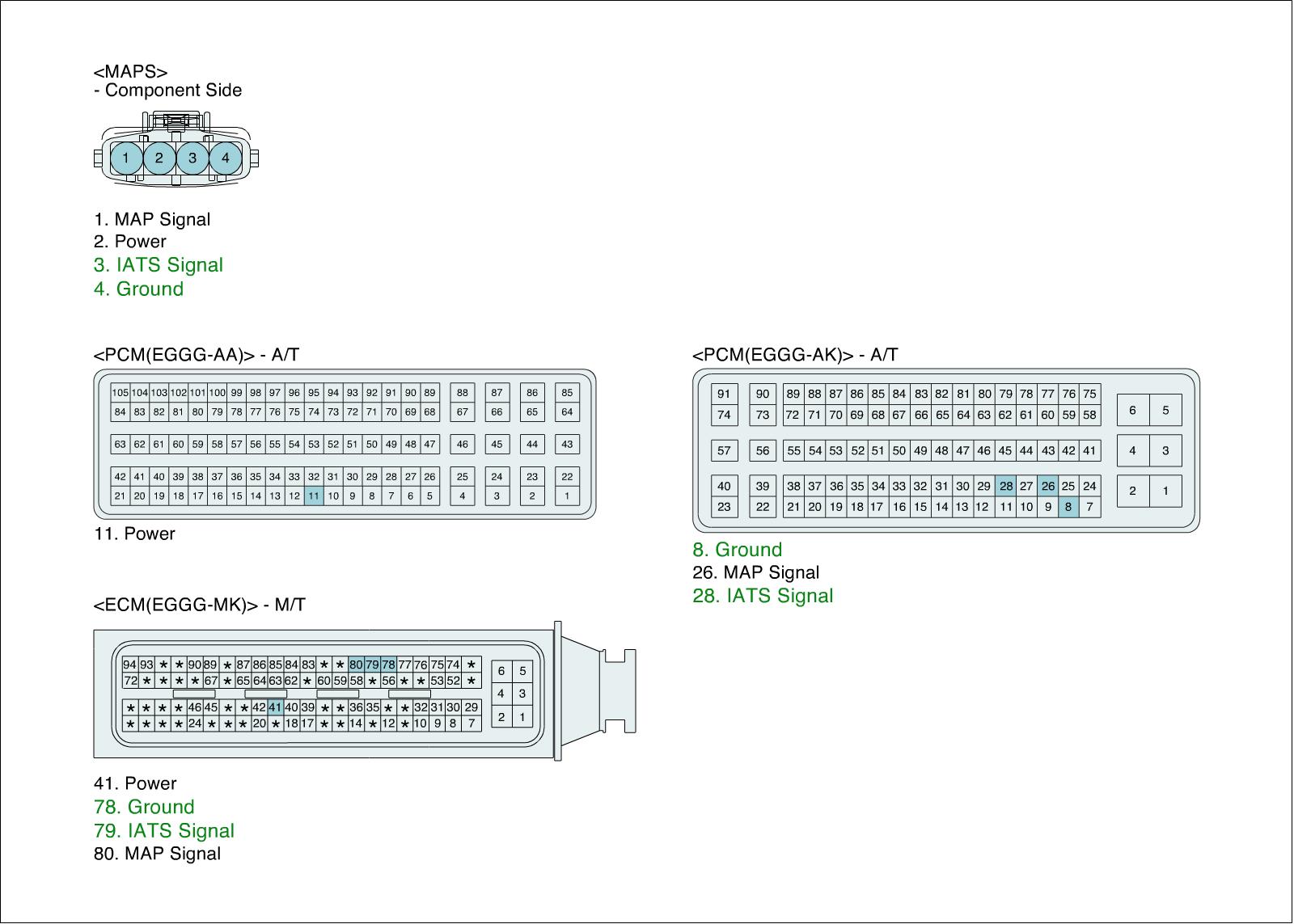

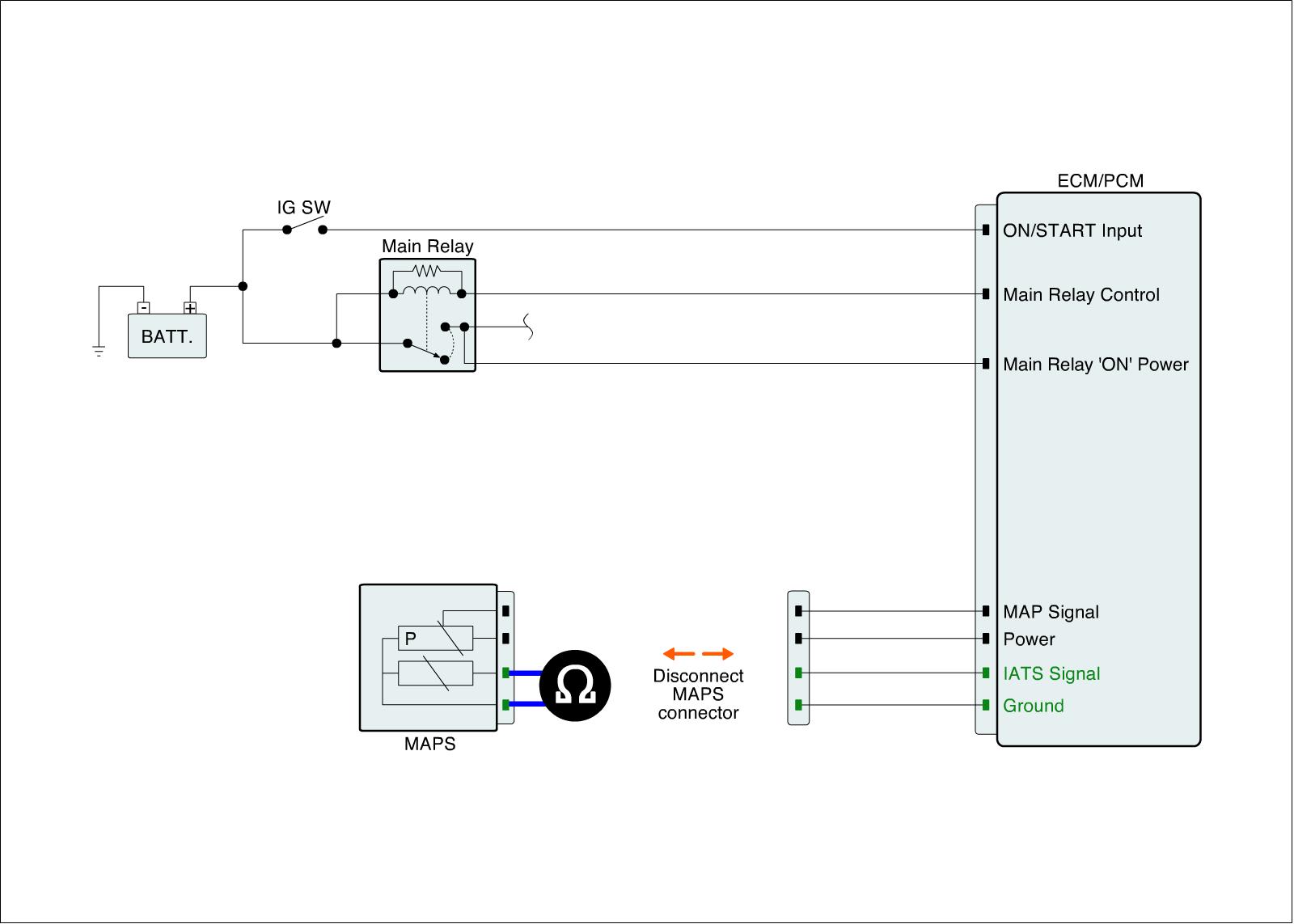

3. Measure resistance between signal and ground terminal of IATS connector(Component Side).

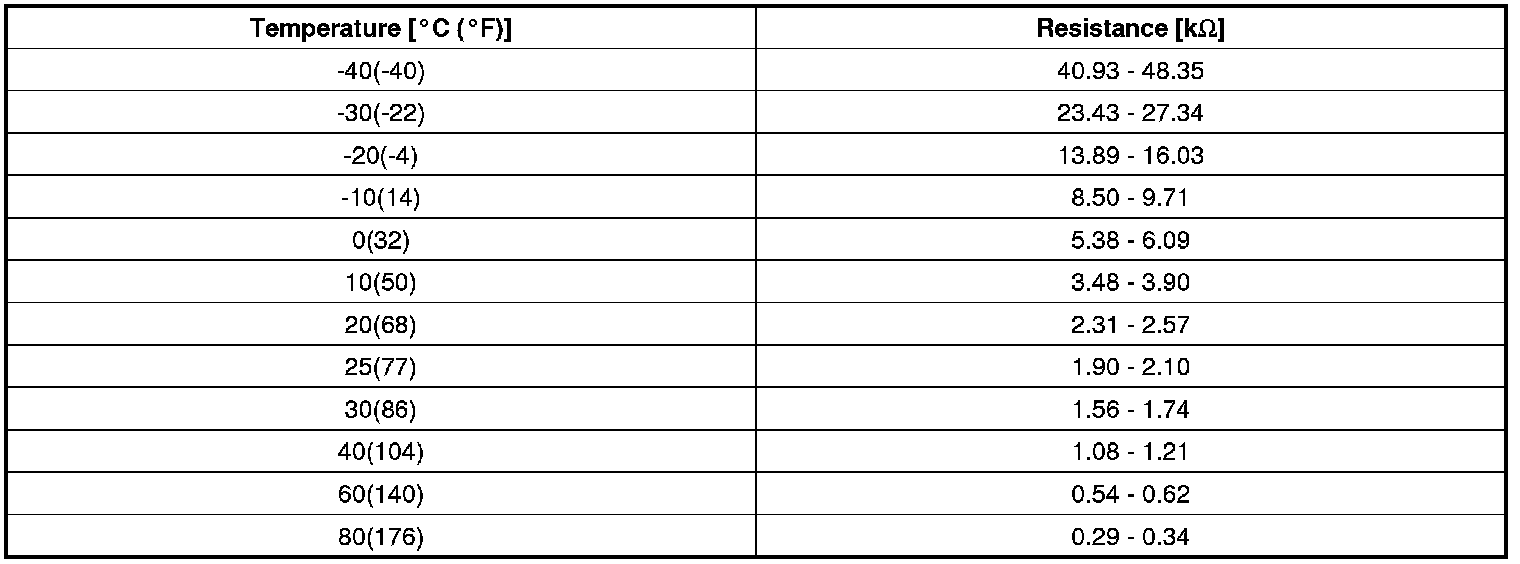

Specification :

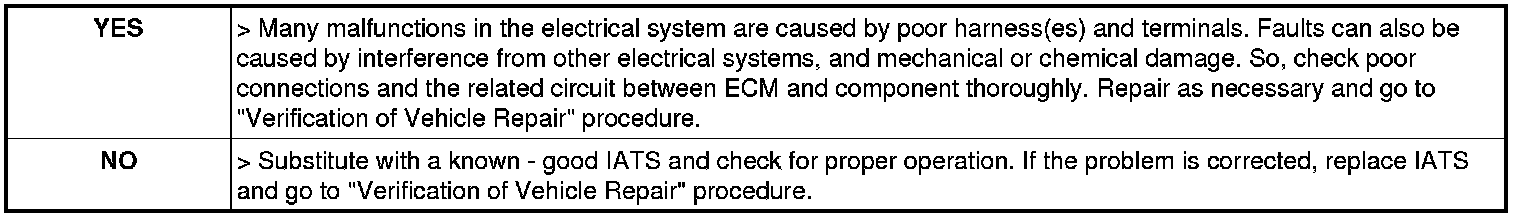

4. Is the measured resistance within specification?
