Component Inspection

Engine Control
P0090 Fuel Pressure Regulator 1 Control Circuit/Open - Inspection/Repair:_:Component Inspection

Component Inspection

Check FPR resistance
1. IG KEY "OFF".
2. Disconnect FPR connector.
3. Measure resitance between terminal 1 and 2 of FPR connector.(Component Side)

Specification :1Ohms±5%

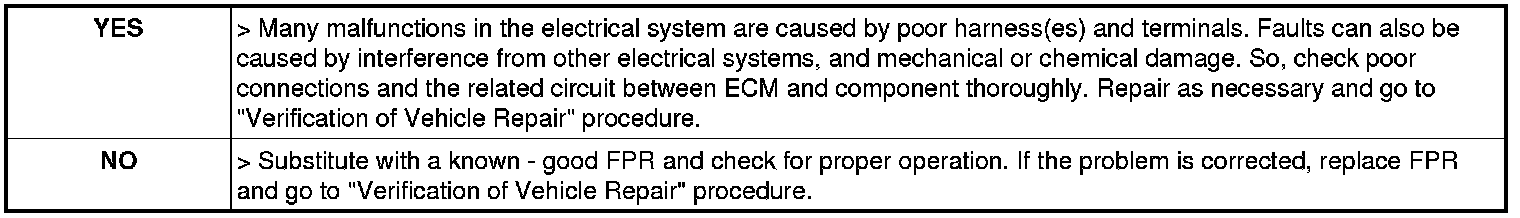

4. Is the measured resistance within specification?
