Component Inspection

Engine Control
P0075 Intake Valve Control Solenoid Circuit (Bank 1) - Inspection/Repair:_:Component Inspection

Component Inspection

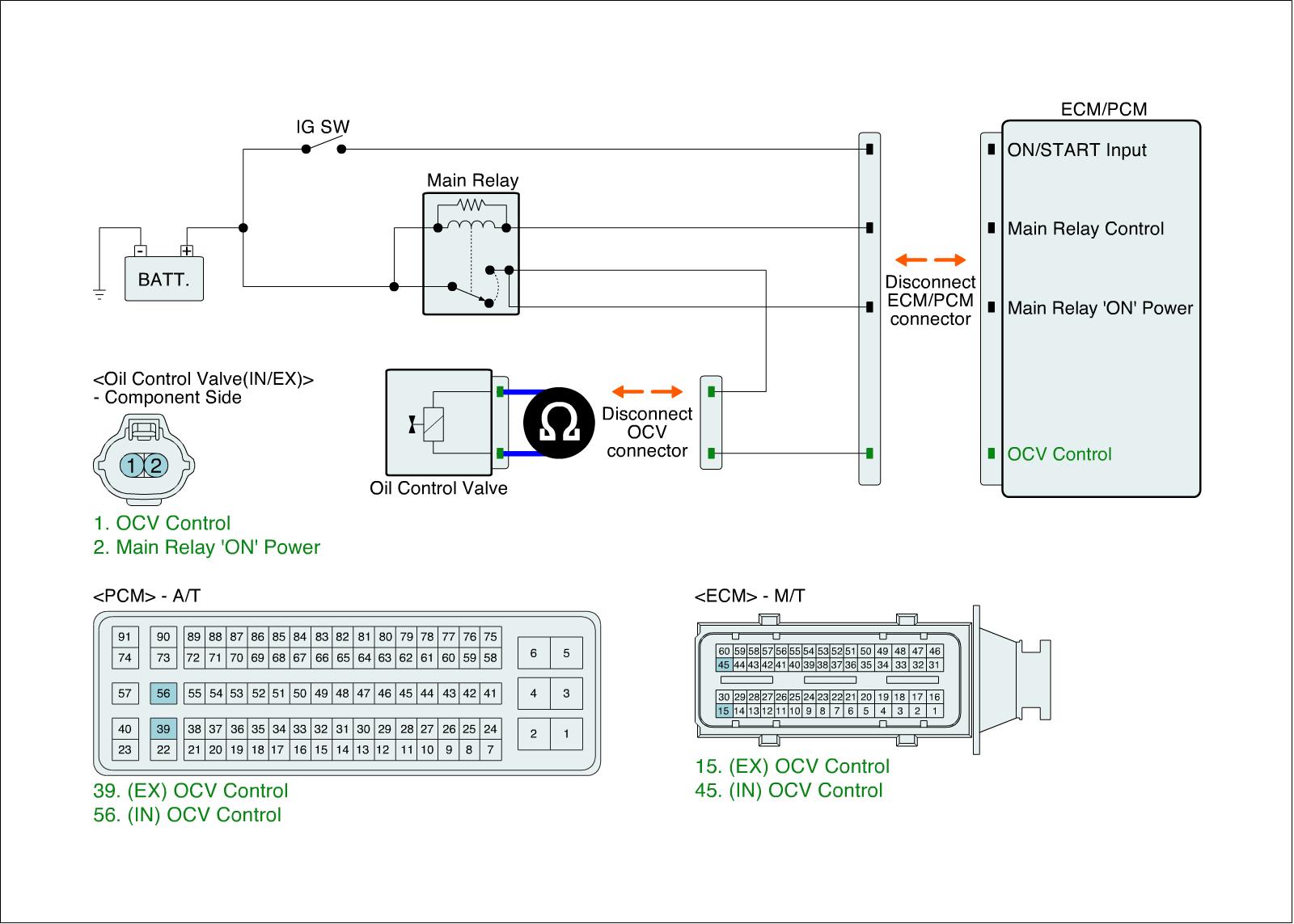

Check OCV resistance
1. IG "OFF".
2. Disconnect OCV connector.
3. Measure resitance between terminal 1 and 2 of OCV connector.(Component Side)
Specification :

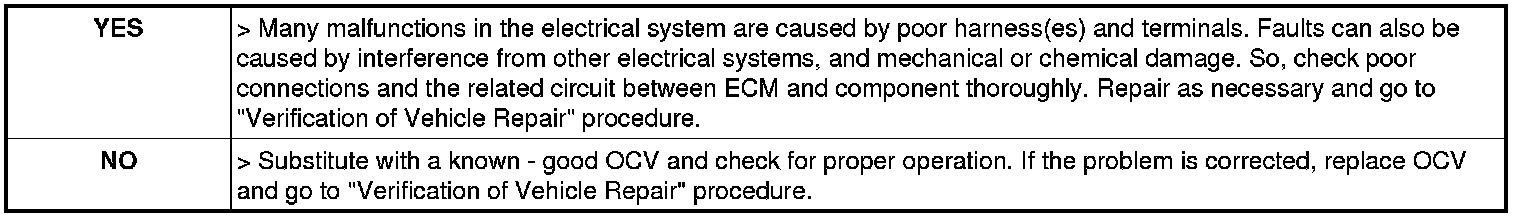

4. Is the measured resistance within specification?
