General Information

Motor driven Power Steering
C2415 Motor Current-Insufficient Flow - General Information

Component Location





Gerneral Description

An operating motor is used to support the driving force of steering wheel when the wheel is turned(rotated) by the driver. The operating motor (a brush type DC motor) is installed in middle of steering column and operates the steering column. The EPS motor can be damaged during disassembly or removal of the operating motor, so you must disassemble or remove the EPS motor with the assembly.

DTC Description

This DTC refers to failure or insufficent current, in motor, during EPS CM control of the motor. This code is set if current under 2A is detected, in motor, due to open/short of EPS motor control harness, faulty contact or short in motor inside.

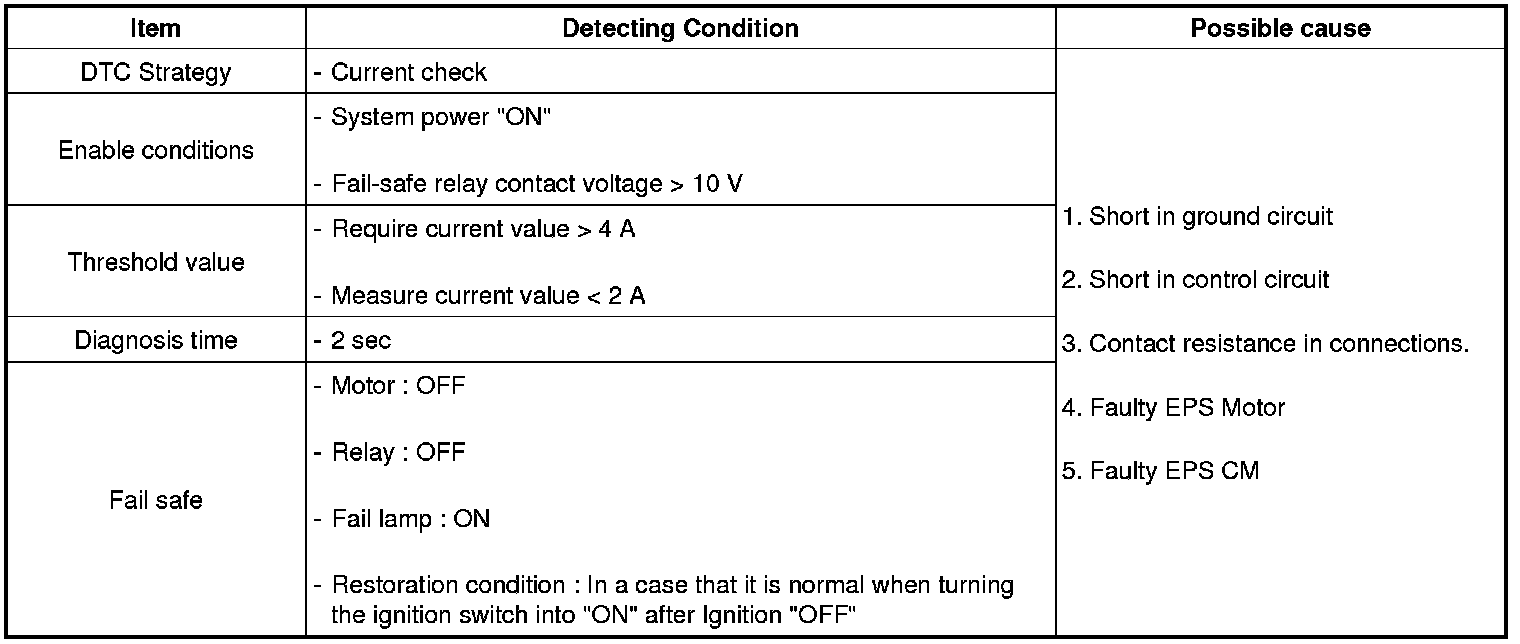

DTC Detecting Condition





Schematic Diagram
