Motor driven Power Steering
C2414 Motor Current-Excessive Overflow - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC) and start engine.
2. Monitor the "MOTOR CURRENT" and "TARGET MOTOR CURRENT" parameter on the scantool.
3. Operate the steering wheel to the left and right.

Specification: Within 65A (Maximum)




Fig.1) Sensor output at turn a handle left during idle

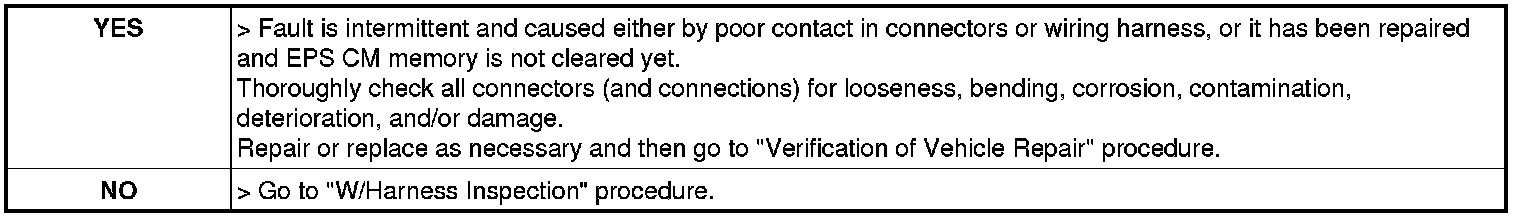

4. Is parameter within specifications?
