Motor driven Power Steering
C2414 Motor Current-Excessive Overflow - General Information

Component Location





Gerneral Description

An operating motor is used to support the driving force of steering wheel when the wheel is turned(rotated) by the driver. The operating motor (a brush type DC motor) is installed in middle of steering column and operates the steering column. The EPS motor can be damaged during disassembly or removal of the operating motor, so you must disassemble or remove the EPS motor with the assembly.

DTC Description

This DTC refers to excessive operating current values in the EPS motor circuit. This code is set if more than 50A is detected, in motor, due to open/short of EPS motor control harness, faulty contact or short inside motor.

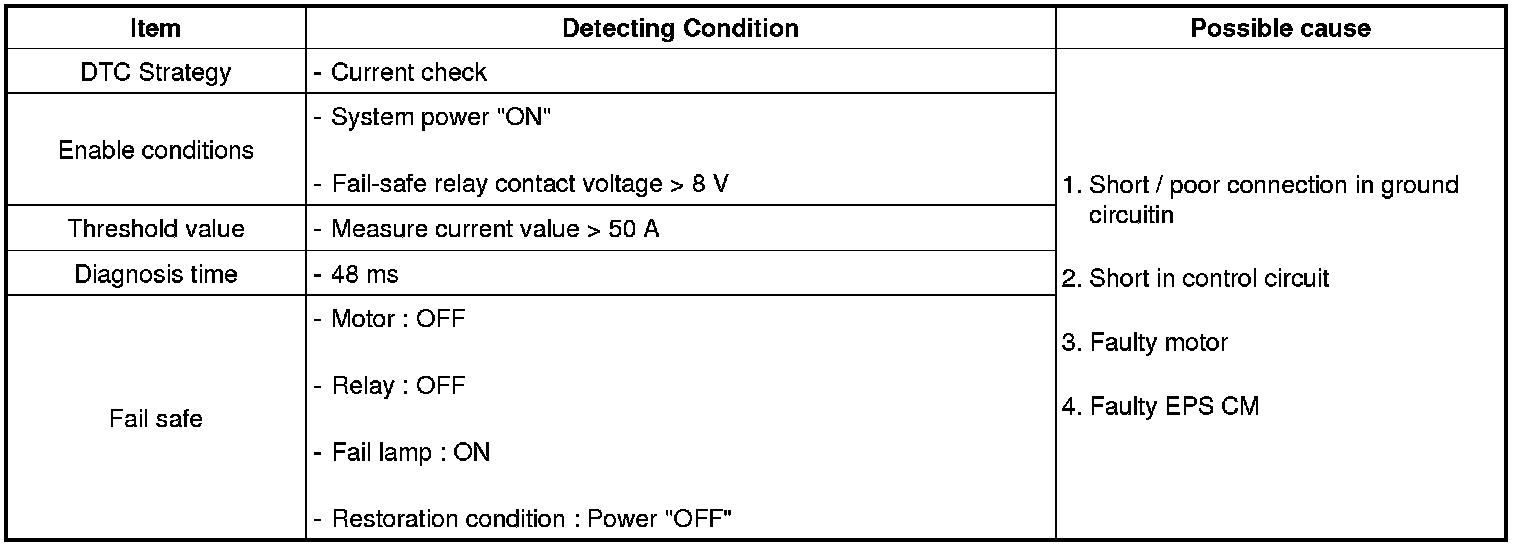

DTC Detecting Condition





Schematic Diagram
