General Information

Motor driven Power Steering
C2413 Motor Current-Overflow - General Information

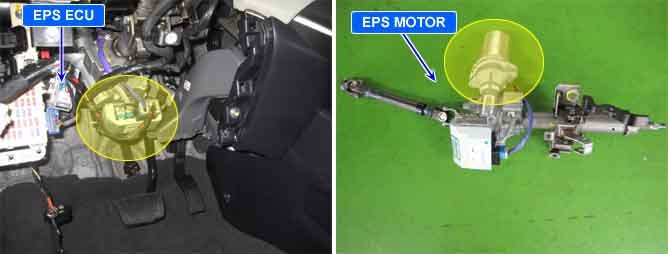

Component Location





Gerneral Description

An operating motor is used to support the driving force of steering wheel when the wheel is turned(rotated) by the driver. The operating motor (a brush type DC motor) is installed in middle of steering column and operates the steering column. The EPS motor can be damaged during disassembly or removal of the operating motor, so you must disassemble or remove the EPS motor with the assembly.

DTC Description

This DTC code refers to open/shorts or faulty connections in the EPS CM circuit. This code is set if while monitoring control current and real current, in the EPS motor circuit, the difference between two values is over 10A.

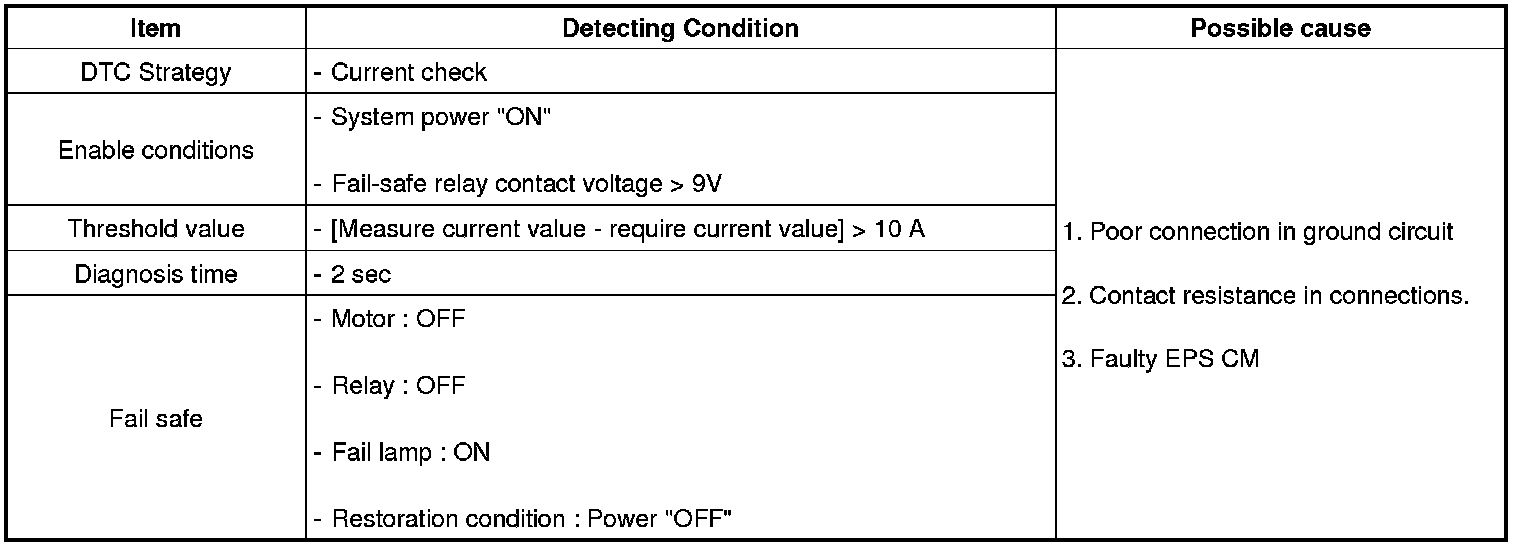

DTC Detecting Condition

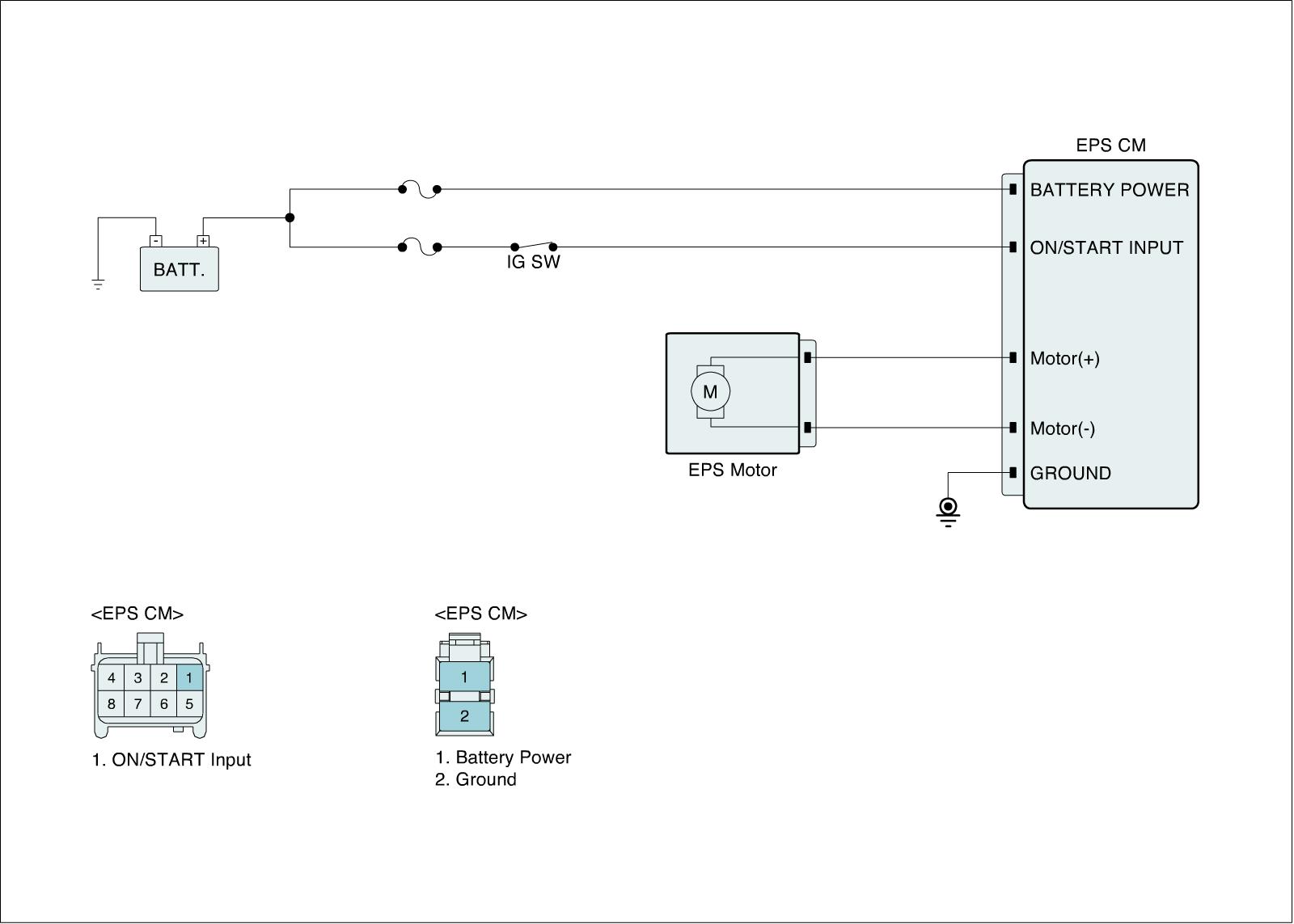

Schematic Diagram
