Component Inspection

Motor driven Power Steering
C2413 Motor Current-Overflow - Inspection/Repair:_:Component Inspection

Component Inspection

Check EPS motor
1. Ignition "OFF".
2. Connect Scantool to Data Link Connector(DLC).
3. Start engine and select "SCOPEMETER FUNCTION" on scantool.
4. Operate the steering wheel to the left and right.

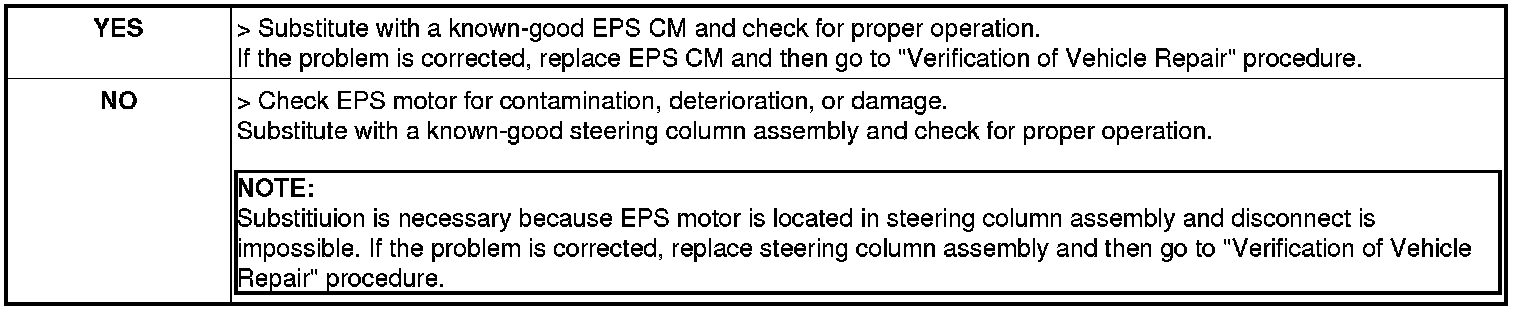

5. Is EPS motor signal output within specifications?
