Component Inspection

Motor driven Power Steering
C2412 Motor circuit-Short to Battery or Ground - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "OFF".
2. Ignition "ON" & Engine "OFF".
3. Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
4. Using a scantool, Clear DTC.
5. Select "Diagnostic Trouble Codes(DTCs)" mode again.

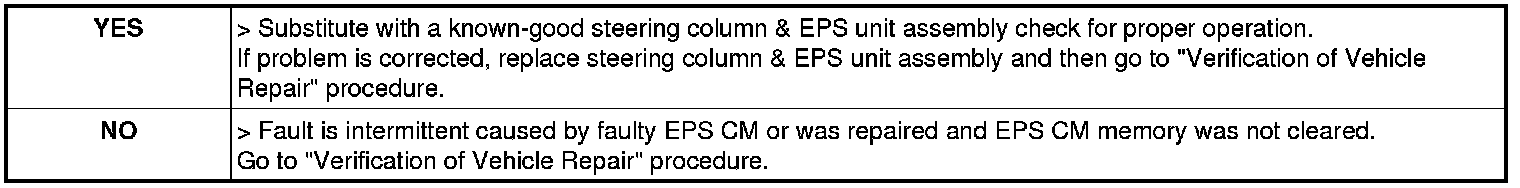

6. Are any DTCs present ?
