Component Inspection





Motor driven Power Steering
C1704 EPS Module(fail safe relay stuck) Malfunction - Inspection/Repair:_:Component Inspection

Component Inspection

1. Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode.
2. Clear DTC.
3. Drive the vehicle within DTC Enable conditions in General information.

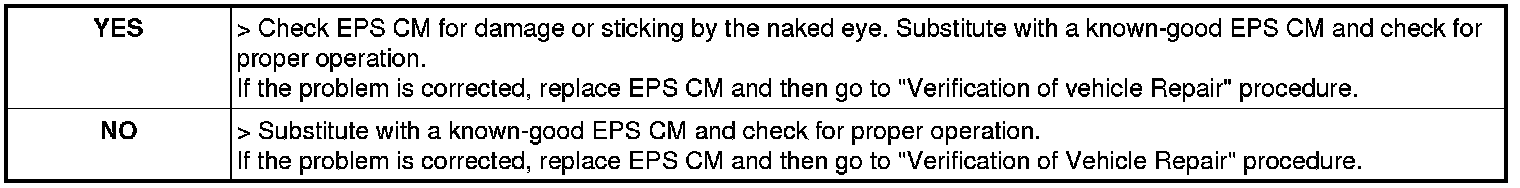

4. Are any DTCs present ?
