General Information

Motor driven Power Steering
C1702 Variant Coding Error - General Information

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) CM has a various parameter setting for different steering feeling according to applied region. EPS CM reads a predefined parameter setting according to applied region. Therefore operation to select applied region has to be done.

DTC Description

EPS(MDPS=Motor Driving Power Steering) CM sets this code if selection of applied region isn't done.

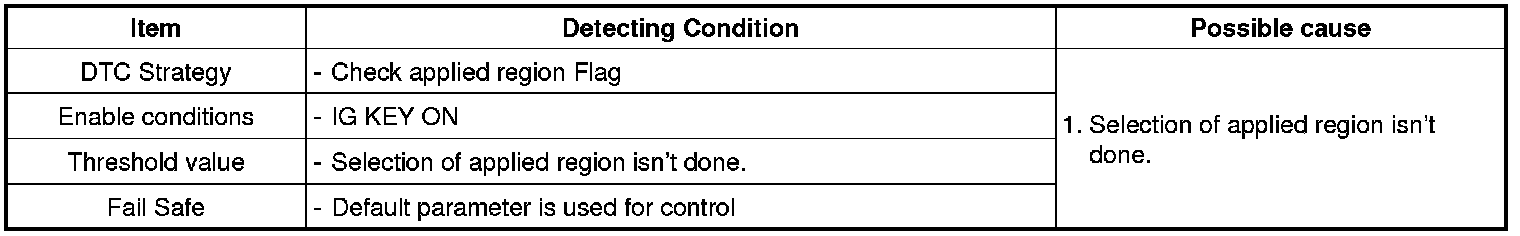

DTC Detecting Condition
